PARK ASSIST / MONITORING  PARKING ASSIST MONITOR SYSTEM  PARTS LOCATION

ILLUSTRATION

3.26,6.094 3.635,7.135 3.635,7.135 3.802,7.135 true 4.656,2.49 5.208,3.969 5.208,3.969 5.375,3.969 true 3.646,1.031 3.813,1.031 3.813,1.031 4.281,1.896 true 3.865,7.063 4.177,7.229 0.313,0.167 10 false *1 5.427,3.896 5.958,4.083 0.531,0.188 10 false *2 (*A) 3.448,0.948 3.76,1.104 0.313,0.156 10 false *3

*A	for Gasoline Model	-	-

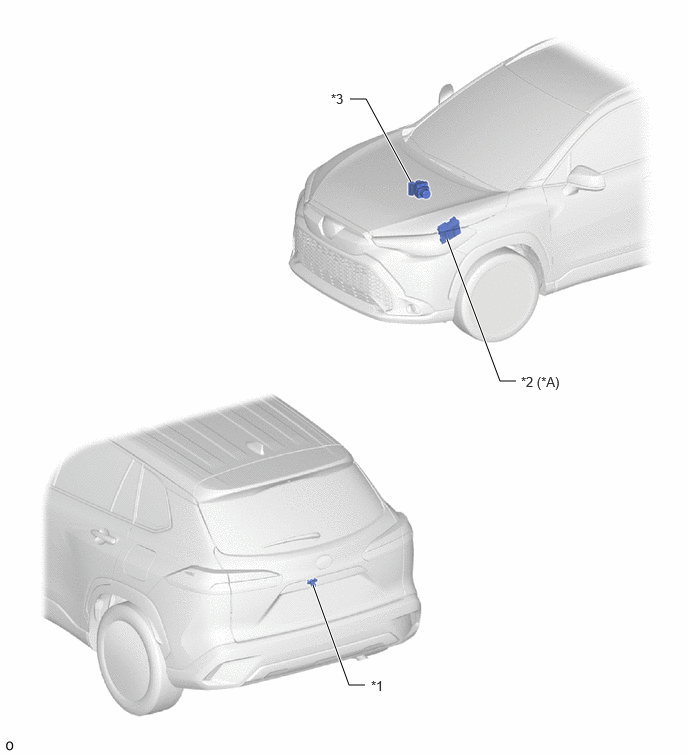

*1	REAR TELEVISION CAMERA ASSEMBLY	*2	ECM
*3	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU	-	-

ILLUSTRATION

2.885,0.906 3.052,0.906 3.052,0.906 3.698,2.323 true 1.135,4.438 1.302,4.438 1.302,4.438 1.625,3.688 true 2.198,4.948 2.365,4.948 2.365,4.948 2.979,3.458 true 5.5,1.083 5.333,1.083 5.333,1.083 4.854,2.323 true 2.042,4.854 2.354,5.01 0.313,0.156 10 false *1 2.698,0.833 3.01,0.99 0.313,0.156 10 false *2 0.938,4.333 1.25,4.49 0.313,0.156 10 false *3 5.552,1 6.156,1.229 0.604,0.229 10 false *4 (*A)

*A	for HEV Model	-	-
*1	STEERING SENSOR	*2	RADIO AND DISPLAY RECEIVER ASSEMBLY
*3	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*4	HYBRID VEHICLE CONTROL ECU
