PARK ASSIST / MONITORING  TOYOTA PARKING ASSIST-SENSOR SYSTEM  Clearance Warning ECU Power Source Circuit


DESCRIPTION

This circuit provides power to operate the clearance warning ECU assembly.

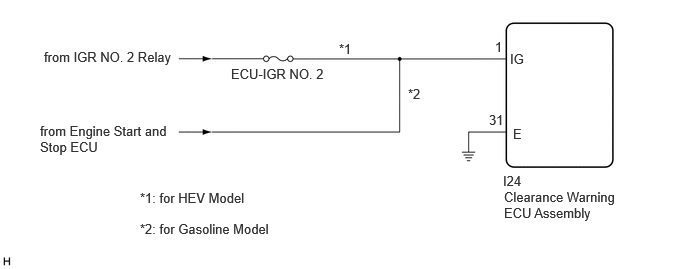

WIRING DIAGRAM

E483498E09
0.458,0.51 2.021,0.813 1.563,0.302 10 false from IGR NO. 2 Relay 2.406,0.688 3.479,0.927 1.073,0.24 10 false ECU-IGR NO. 2 5.25,1.969 6.479,2.469 1.229,0.5 10 false Clearance Warning ECU Assembly 5.313,0.531 5.625,0.729 0.313,0.198 10 false IG 5.344,1.313 5.656,1.51 0.313,0.198 10 false E 5.094,1.167 5.406,1.365 0.313,0.198 10 false 31 5.156,0.406 5.469,0.604 0.313,0.198 10 false 1 5.24,1.802 5.76,2.104 0.521,0.302 10 false I24 3.531,0.427 4.604,0.667 1.073,0.24 10 false *1 4.25,0.896 5.323,1.135 1.073,0.24 10 false *2 0.417,1.281 1.802,1.667 1.385,0.385 10 false from Engine Start and Stop ECU 1.458,1.979 3.99,2.354 2.531,0.375 10 false *1: for HEV Model 1.458,2.302 3.99,2.677 2.531,0.375 10 false *2: for Gasoline Model

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU ASSEMBLY POWER SOURCE)
a.

Disconnect the I24 clearance warning ECU assembly connector.


b.

Measure the voltage according to the value(s) in the table below.

i.

for HEV Model:

Standard Voltage:
Tester Connection Switch Condition Specified Condition
I24-1 (IG) - Body ground Ignition switch ON 11 to 14 V
I24-1 (IG) - Body ground Ignition switch off Below 1 V



ii.

for Gasoline model:

Standard Voltage:
Tester Connection Switch Condition Specified Condition
I24-1 (IG) - Body ground Ignition switch ON 10.5 to 16 V
I24-1 (IG) - Body ground Ignition switch off Below 1 V




Result:
Result Proceed to
OK A
NG (for HEV Model) B
NG (for Gasoline Model) C



A

2.CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU ASSEMBLY - BODY GROUND)

B

REPAIR OR REPLACE HARNESS OR CONNECTOR

C

GO TO STOP AND START SYSTEM

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING


2.CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU ASSEMBLY - BODY GROUND)
a.

Measure the voltage according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I24-31 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING ASSIST MONITOR SYSTEM>PROBLEM SYMPTOMS TABLE


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
