RM38T0EC _V1 General _104397 MAINTENANCE _0510704 REAR BRAKE FLEXIBLE HOSE A

MAINTENANCE  REAR BRAKE FLEXIBLE HOSE  INSTALLATION


CAUTION / NOTICE / HINT

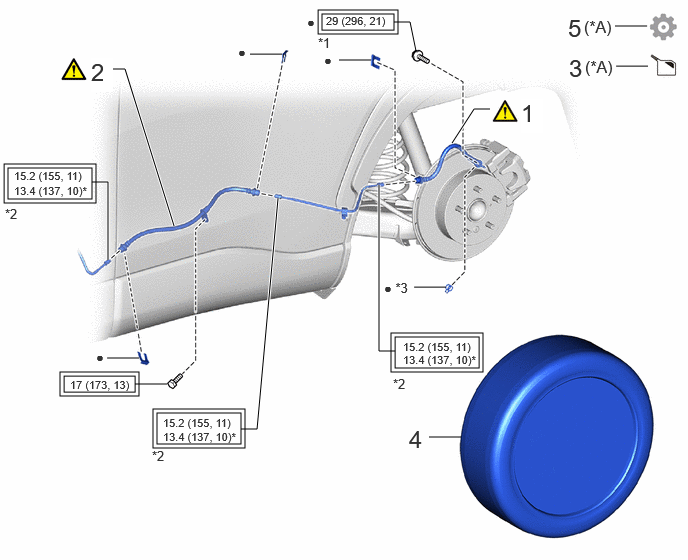

COMPONENTS (INSTALLATION)
C505516N01
0.083,1.75 0.958,2.073 0.875,0.323 0.042,1.708 1,2.115 0.958,0.406 1.594,4.26 2.552,4.667 0.958,0.406 1.635,4.302 2.51,4.625 0.875,0.323 0.667,3.917 1.406,4.083 0.74,0.167 4.115,3.51 4.99,3.833 0.875,0.323 4.073,3.469 5.031,3.875 0.958,0.406 3.354,0.146 4.104,0.313 0.75,0.167 3.313,0.104 4.146,0.354 0.833,0.25 0.625,3.875 1.448,4.125 0.823,0.25 6.406,0.271 6.74,0.271 false 4.469,4.552 4.802,4.552 false 1.135,0.719 1.302,0.719 1.302,0.719 1.813,2.354 true 4.104,0.229 4.271,0.229 4.271,0.229 4.333,0.531 false 5.104,1.135 4.938,1.135 4.938,1.135 4.708,1.49 true 3.531,0.625 3.865,0.625 false 4.313,2.99 4.646,2.99 false 2.604,0.563 2.938,0.563 false 1.115,3.729 1.448,3.729 false 0.958,1.896 1.125,1.896 1.125,1.896 1.125,2.708 true 1.406,4 1.74,4 false 2.51,4.469 2.677,4.469 2.677,4.469 2.896,2.063 true 4.115,3.656 3.948,3.656 3.948,3.656 3.948,1.927 true 6.417,0.688 6.75,0.688 false 5.927,0.563 6.26,0.896 0.333,0.333 18 false 3 4.26,4.427 4.542,4.781 0.281,0.354 18 false 4 0.948,0.604 1.177,0.958 0.229,0.354 18 true 2 3.198,0.146 3.583,0.354 0.385,0.208 10 false ● 0.052,2.146 0.271,2.344 0.219,0.198 10 false *2 3.375,0.542 3.542,0.74 0.167,0.198 10 false ● 5.427,1.031 5.656,1.385 0.229,0.354 18 true 1 4,2.917 4.354,3.135 0.354,0.219 10 false ● *3 2.479,0.458 2.646,0.656 0.167,0.198 10 false ● 1,3.635 1.167,3.833 0.167,0.198 10 false ● 1.583,4.667 1.802,4.865 0.219,0.198 10 false *2 0.146,1.76 1.865,1.917 1.719,0.156 8 false 15.2 (155, 11) 0.146,1.917 1.865,2.073 1.719,0.156 8 false 13.4 (137, 10)* 0.729,3.938 1.479,4.115 0.75,0.177 8 false 17 (173, 13) 1.698,4.333 3.417,4.49 1.719,0.156 8 false 15.2 (155, 11) 1.698,4.479 3.417,4.635 1.719,0.156 8 false 13.4 (137, 10)* 4.198,3.542 5.917,3.698 1.719,0.156 8 false 15.2 (155, 11) 4.198,3.677 5.917,3.833 1.719,0.156 8 false 13.4 (137, 10)* 4.094,3.917 4.313,4.115 0.219,0.198 10 false *2 3.396,0.146 4.146,0.323 0.75,0.177 8 false 29 (296, 21) 3.313,0.365 3.698,0.573 0.385,0.208 10 false *1 6.094,0.594 6.563,0.854 0.469,0.26 12 false (*A) 5.917,0.146 6.25,0.479 0.333,0.333 18 false 5 6.083,0.177 6.552,0.438 0.469,0.26 12 false (*A)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR FLEXIBLE HOSE 47319F (Click here) - -
2 REAR BRAKE TUBE FLEXIBLE HOSE 47316A (Click here) - -
3 BLEED BRAKE LINE - - (Click here) -
4 REAR WHEEL - - - -
5 INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL - - - (Click here)

*A for HEV Model - -
*1 UNION BOLT *2 BRAKE LINE
*3 GASKET - -
V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) * For use with a union nut wrench
● Non-reusable part - -

CAUTION / NOTICE / HINT

NOTICE:

When reusing the rear brake tube flexible hoses, use the identification marks created during removal to install each rear brake tube flexible hose to its original position.


HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 47319F 1.INSTALL REAR FLEXIBLE HOSE

Z101186

NOTICE:

When installing the rear flexible hose, minimize twisting of the hose.

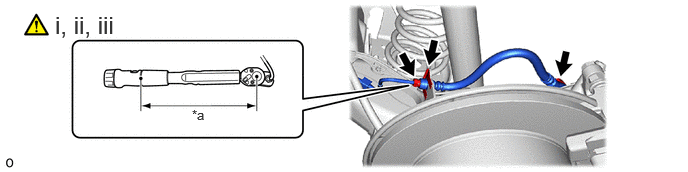

a.
C438980C02
2,1.115 2.313,1.313 0.313,0.198 10 false *a 0.573,0.115 1.344,0.469 0.771,0.354 18 false i, ii, iii
*a Torque Wrench Fulcrum Length - -


i.

Install the rear flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)

NOTICE:

Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly.



ii.

Install the rear flexible hose with a new clip.

NOTICE:

Install the clip as far as it will go.



iii.

Using a union nut wrench, connect the brake line to the rear flexible hose while holding the rear flexible hose with a wrench.

Torque:
Specified tightening torque : 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

NOTICE:
·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.



HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

13.4 N*m (137 kgf*cm, 10 ft.*lbf)





Hide 47316A 2.INSTALL REAR BRAKE TUBE FLEXIBLE HOSE

Z101186

NOTICE:

When installing the rear brake tube flexible hose, minimize twisting of the hose.



a.
C438978C01
2.021,2.448 2.333,2.646 0.313,0.198 10 false *a 5.615,2.448 5.927,2.646 0.313,0.198 10 false *a 0.365,0.031 1.198,0.344 0.833,0.313 18 true iii, iv, v 3.948,0.042 4.354,0.344 0.406,0.302 18 true i, ii
*a Torque Wrench Fulcrum Length - -


i.

Install the rear brake tube flexible hose with a new clip.

NOTICE:
·

Install the clip as far as it will go.

·

When installing the rear brake tube flexible hose, face the identification mark to the upper side of the vehicle.




ii.

Using a union nut wrench, connect the brake line to the rear brake tube flexible hose while holding the rear brake tube flexible hose with a wrench.

Torque:
Specified tightening torque : 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

NOTICE:
·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.



HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

13.4 N*m (137 kgf*cm, 10 ft.*lbf)




iii.

Install the rear brake tube flexible hose to the flexible hose bracket with the bolt.

Torque:
17 N*m (173 kgf*cm, 13 ft.*lbf)


iv.

Install the rear brake tube flexible hose with a new clip.

NOTICE:

Install the clip as far as it will go.



v.

Using a union nut wrench, connect the brake line to the rear brake tube flexible hose while holding the rear brake tube flexible hose with a wrench.

Torque:
Specified tightening torque : 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

NOTICE:
·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.



HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

13.4 N*m (137 kgf*cm, 10 ft.*lbf)





Hide 5. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL (for HEV Model)

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
