RM38T0EC _V1 General _104397 MAINTENANCE _0510703 REAR DISC BRAKE PAD A

MAINTENANCE REAR DISC BRAKE PAD REMOVAL

CAUTION / NOTICE / HINT

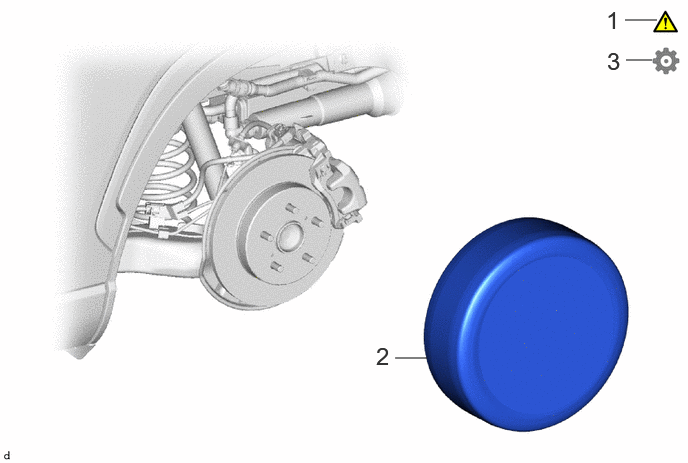

COMPONENTS (REMOVAL)

4.115,3.729 4.448,3.729 false 6.521,0.625 6.792,0.625 false 6.51,0.208 6.844,0.208 false 6.323,0.49 6.906,0.844 0.583,0.354 18 false 3 3.917,3.563 4.5,3.917 0.583,0.354 18 false 2 6.313,0.063 6.896,0.417 0.583,0.354 18 false 1

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_V1,_104397,_0510703,RM100000002BUX7_07_0011,)	-	-
2	REAR WHEEL	-	-	-	-
3	PERFORM REAR BRAKE PAD REPLACEMENT MODE	-	-	-	(202307,999999,_V1,_104397,_0510703,RM100000002BUX7_07_0009,)

3.771,3.729 5.354,4.646 1.583,0.917 2,3.49 3.5,4.365 1.5,0.875 6.042,4.094 6.667,5.042 0.625,0.948 3.906,4.792 5.698,5.323 1.792,0.531 1.75,4.042 2,4.042 false 3.573,5.031 3.906,5.031 false 4.938,2.417 5.354,2.417 false 6.375,5.302 6.375,5.052 false 5.354,3.802 5.688,3.802 false 3.333,1.115 4.083,1.115 true 2.615,0.396 2.813,0.24 2.813,0.24 2.979,0.24 false 4.365,1 4.938,1.344 0.573,0.344 18 false 5 5.667,2.302 5.948,2.656 0.281,0.354 18 false 4 6.417,5.313 6.698,5.594 0.281,0.281 18 false 7 3.375,4.906 3.656,5.26 0.281,0.354 18 false 7 5.75,3.646 6.031,4 0.281,0.354 18 false 6 1.573,3.906 1.854,4.26 0.281,0.354 18 false 7 3.229,4.948 3.552,5.167 0.323,0.219 10 false ● 3.063,0.135 3.219,0.333 0.156,0.198 10 false ●

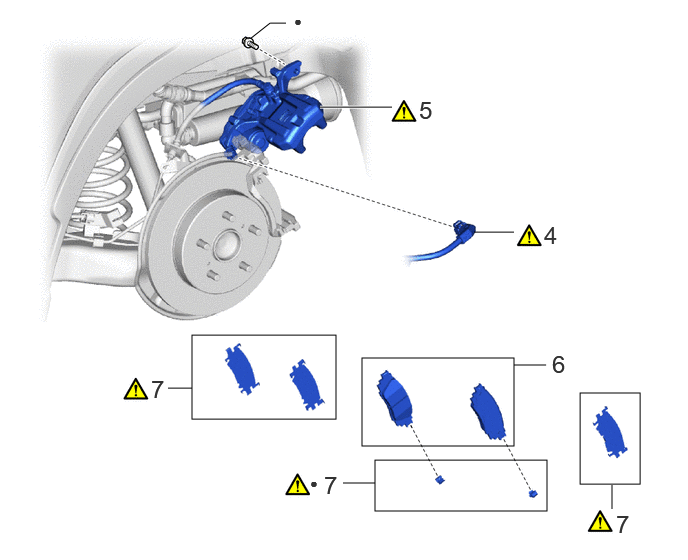

Procedure		Part Name Code
4	NO. 2 PARKING BRAKE WIRE ASSEMBLY	890C0A	(202307,999999,_V1,_104397,_0510703,RM100000002BUX7_07_0012,)	-	-
5	REAR DISC BRAKE CYLINDER ASSEMBLY	-	(202307,999999,_V1,_104397,_0510703,RM100000002BUX7_07_0008,)	-	-
6	REAR DISC BRAKE PAD KIT	04466	-	-	-
7	REAR DISC BRAKE ANTI-SQUEAL SHIM KIT	-	(202307,999999,_V1,_104397,_0510703,RM100000002BUX7_07_0005,)	-	-

●

Non-reusable part

CAUTION / NOTICE / HINT

NOTICE:: ·

Immediately after installing the rear disc brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.

·

After replacing the rear disc brake pads, the brake pedal may feel soft due to clearance between the rear disc brake pads and rear disc. Depress the brake pedal several times until the brake pedal feels firm.

·

After replacing the rear disc brake pads, always perform a road test to check the braking performance and check for vibrations.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: Make sure to read the precautions of the electric parking brake system before removing the rear brake assembly.; Click here(202307,999999,_54,_112607,_0510712,RM100000002BZ04,)

Hide Display 2.REMOVE REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202201,999999,_V1,_104397,_0503374,RM100000001ZE9H,

Hide Display 3.PERFORM REAR BRAKE PAD REPLACEMENT MODE

for HEV Model:

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE SYSTEM (for HEV Model)>TEST MODE PROCEDURE202307,999999,_54,_112607,_0608079,RM100000002C7FW,

for Gasoline Model:

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE SYSTEM (for Gasoline Model)>TEST MODE PROCEDURE202307,999999,_54,_112607,_0608082,RM100000002C7GN,

Hide Display 890C0A 4.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Click here(

202201,999999,_54,_112607,_0510714,RM1000000020AHV_04_0007,)

Hide Display 5.SEPARATE REAR DISC BRAKE CYLINDER ASSEMBLY

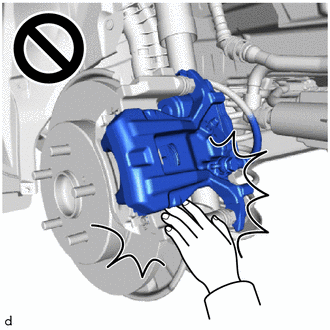

CAUTION:: ·

Be careful not to get pinched by the rear disc brake cylinder assembly or other parts when removing the rear disc brake pads.

·

After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.

·

The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

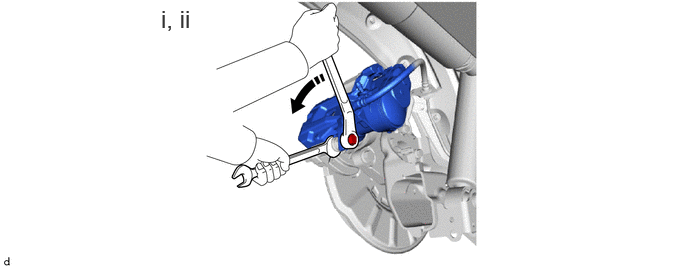

1.677,0.052 3.052,0.406 1.375,0.354 18 false i, ii

Hold the rear disc brake cylinder slide pin (lower side) and remove the bolt.

ii.

Pull the rear disc brake cylinder assembly upward.

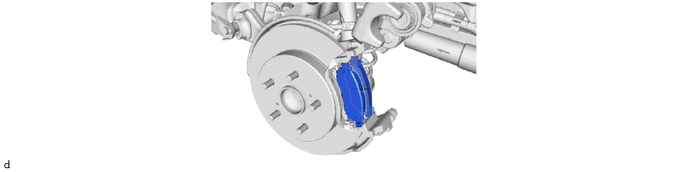

Hide Display 04466 6.REMOVE REAR DISC BRAKE PAD KIT

Hide Display 7.REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

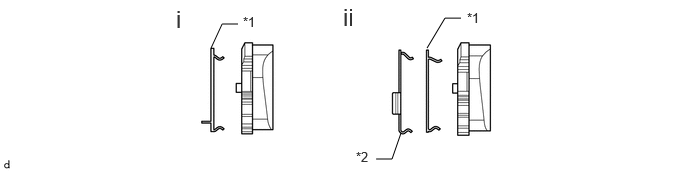

2.198,0.5 2.313,0.25 2.313,0.25 2.479,0.25 false 3.917,1.656 4.083,1.656 4.083,1.656 4.177,1.385 false 4.448,0.5 4.635,0.188 4.635,0.188 4.802,0.188 false 2.531,0.146 2.844,0.302 0.313,0.156 10 false *1 3.708,1.552 4.021,1.708 0.313,0.156 10 false *2 4.865,0.104 5.177,0.26 0.313,0.156 10 false *1 1.833,0.052 2,0.323 0.167,0.271 18 false i 3.573,0.031 3.802,0.302 0.229,0.271 18 false ii

Rear Disc Brake Anti-squeal Shim

Rear No. 2 Disc Brake Anti-squealShim

Remove the rear disc brake anti-squeal shim from the rear disc brake pad.

ii.

Remove the rear disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim from each rear disc brake pad.

2.323,0.052 2.604,0.406 0.281,0.354 18 false i

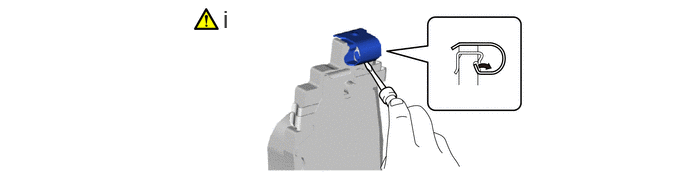

Using a screwdriver, remove the rear disc brake pad wear indicator plate from each rear disc brake pad.
