MAINTENANCE  BRAKE FLUID(for HEV Model)  COMPONENTS

ILLUSTRATION

4.573,0.75 4.906,0.75 false 5.031,1.521 5.365,1.521 false 3.406,1.323 3.74,1.323 false 5.406,1.417 5.719,1.573 0.313,0.156 10 false *1 3.219,1.229 3.531,1.385 0.313,0.156 10 false *2 4.969,0.656 5.281,0.813 0.313,0.156 10 false *3

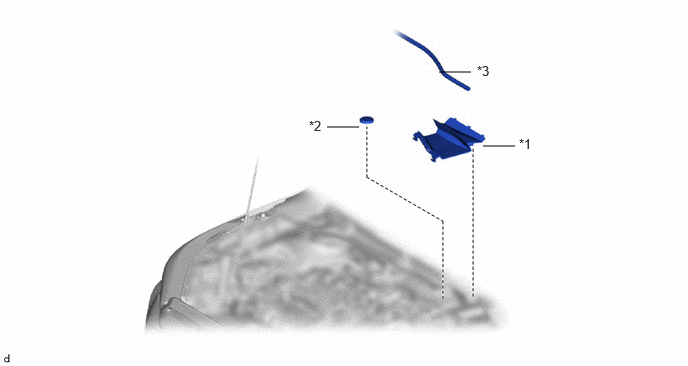

*1	CENTER COWL TOP VENTILATOR LOUVER	*2	BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY
*3	HOOD TO COWL TOP SEAL	-	-

ILLUSTRATION

2.24,0.677 3.24,0.844 1,0.167 2.198,0.635 3.281,0.885 1.083,0.25 5.354,0.76 6.438,1.01 1.083,0.25 5.396,0.802 6.396,0.969 1,0.167 1.885,0.99 2.073,0.76 2.073,0.76 2.24,0.76 true 1.917,1.74 2.25,1.74 false 5.448,0.5 5.781,0.5 false 5.063,0.885 5.396,0.885 false 2.208,0.917 2.521,1.073 0.313,0.156 10 false *1 2.313,1.646 2.625,1.802 0.313,0.156 10 false *2 5.354,1.052 5.667,1.208 0.313,0.156 10 false *3 5.833,0.417 6.146,0.573 0.313,0.156 10 false *4 2.302,0.677 3.281,0.833 0.979,0.156 8 false 8.3 (85, 73 in.*lbf) 5.458,0.802 6.438,0.958 0.979,0.156 8 false 8.3 (85, 73 in.*lbf)

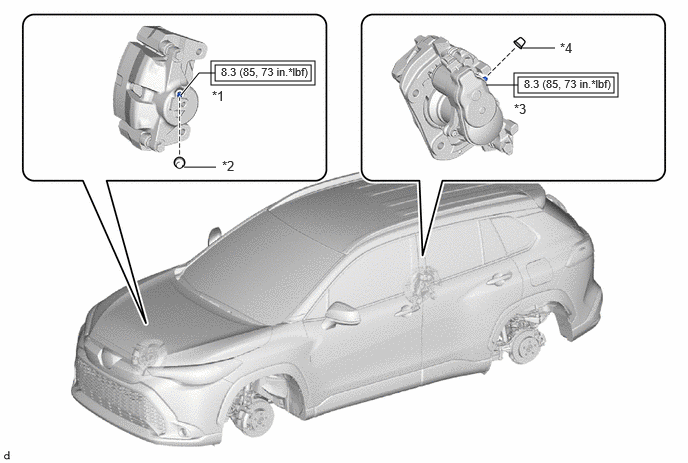

*1	FRONT DISC BRAKE BLEEDER PLUG	*2	FRONT DISC BRAKE BLEEDER PLUG CAP
*3	REAR DISC BRAKE BLEEDER PLUG	*4	REAR DISC BRAKE BLEEDER PLUG CAP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-
