BRAKE SYSTEM (OTHER)
_0604483
BRAKE MASTER CYLINDER(for HEV Model)
A
BRAKE SYSTEM (OTHER) BRAKE MASTER CYLINDER(for HEV Model) DISASSEMBLY
CAUTION / NOTICE / HINT

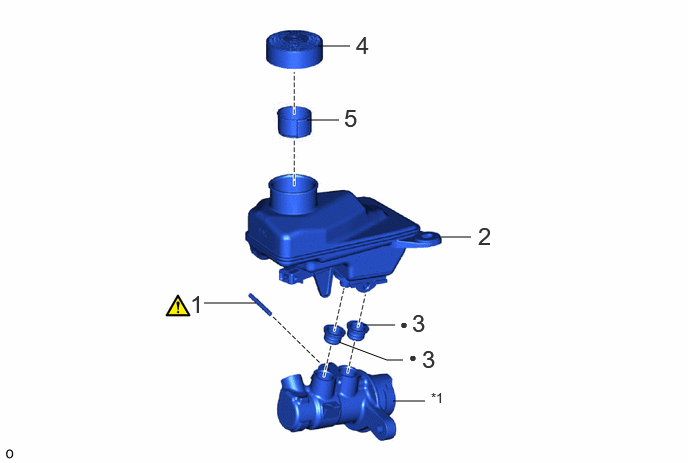

COMPONENTS (DISASSEMBLY)
4.094,4.177 4.427,4.177
false
3.781,3.385 4.115,3.385
false
4.573,2.469 4.906,2.469
false
2.125,3.156 2.667,3.156
false
3.198,1.25 3.531,1.25
false
3.313,0.479 3.646,0.479
false
3.531,3.563 4.031,3.75
4.031,3.75 4.198,3.75
false
3.583,1.083 3.865,1.438
0.281,0.354
18
false
5
3.708,0.323 3.99,0.677
0.281,0.354
18
false
4
4.979,2.313 5.26,2.667
0.281,0.354
18
false
2
1.979,3.021 2.26,3.375
0.281,0.354
18
false
1
4.292,3.219 4.573,3.573
0.281,0.354
18
false
3
4.396,3.594 4.677,3.948
0.281,0.354
18
false
3
4.167,3.292 4.448,3.646
0.281,0.354
10
false
●
4.26,3.635 4.542,3.99
0.281,0.354
10
false
●
4.49,4.063 4.771,4.417
0.281,0.354
10
false
*1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | BRAKE MASTER CYLINDER STRAIGHT PIN | 47210U | ( 202307,999999,_54,_113942,_0604483,RM100000002BUHV_01_0013,)
|
- | - |
| 2 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY | 47220D | - | - | - |
| 3 | MASTER CYLINDER RESERVOIR GROMMET | 47255 | - | - | - |
| 4 | BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY | 47230 | - | - | - |
| 5 | BRAKE MASTER CYLINDER RESERVOIR STRAINER | 47299 | - | - | - |
| *1 | BRAKE MASTER CYLINDER BODY | - | - |
| ● | Non-reusable part | - | - |
PROCEDURE
47210U

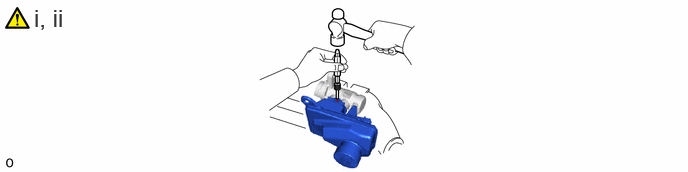

1.REMOVE BRAKE MASTER CYLINDER STRAIGHT PIN
a.
0.354,0.042 1.729,0.396
1.375,0.354
18
false
i, ii
i.
Secure the brake master cylinder sub-assembly in a vise.
- NOTICE:
-
Place aluminum plates on the vise to prevent damage to the brake master cylinder sub-assembly.
ii.
Using a 5 mm pin punch and a hammer, tap out the brake master cylinder straight pin from the brake master cylinder sub-assembly.
- NOTICE:
-
Do not drop the brake master cylinder reservoir assembly.
47220D
2.REMOVE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
a.
47255
3.REMOVE MASTER CYLINDER RESERVOIR GROMMET
a.
47230
4.REMOVE BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY
a.
47299
5.REMOVE BRAKE MASTER CYLINDER RESERVOIR STRAINER
a.
