BRAKE SYSTEM (OTHER)  BRAKE SYSTEM(for HEV Model)  ON-VEHICLE INSPECTION


PROCEDURE

Hide 47210L 1.INSPECT BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

a.

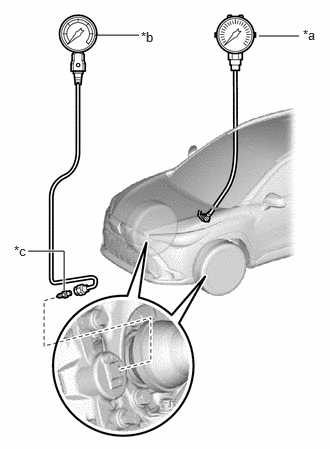

C498663C01
2.698,0.375 3.115,0.375 false 0.99,0.365 1.448,0.365 false 0.667,3.031 0.667,2.615 0.667,2.615 0.292,2.615 true 3.156,0.281 3.427,0.542 0.271,0.26 10 false *a 1.469,0.302 1.917,0.635 0.448,0.333 10 false *b 0.146,2.531 0.417,2.813 0.271,0.281 10 false *c
*a Pedal Effort Gauge
*b SST (LSPV Gauge)
*c SST (No. 1 Nipple)


Remove the front disc brake cylinder bleeder plug and set a pedal effort gauge and SST.

SST
09709-29018  (09709-00060)


b.

Bleed air from SST (LSPV gauge).

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE FLUID (for HEV Model)>BLEEDING


c.

Shift lever in P and the parking brake applied.


d.

Turn the ignition switch to ON (READY), check the hydraulic pressure by depressing the brake pedal.

Standard Result:
Pedal Effort Hydraulic Pressure
50 N (5 kgf, 11.2 lbf) 2.1 MPa (21.4 kgf/cm2, 305 psi)
100 N (10 kgf, 22.5 lbf) 5.5 MPa (56.1 kgf/cm2, 798 psi)
150 N (15 kgf, 33.7 lbf) 7.2 MPa (73.4 kgf/cm2, 1044 psi)
200 N (20 kgf, 45.0 lbf) 7.6 MPa (77.5 kgf/cm2, 1102 psi)



e.

Remove the pedal effort gauge and SST, and bleed the brake line.

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE FLUID (for HEV Model)>BLEEDING


f.

If the result is not as specified, replace the brake booster with master cylinder assembly.

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HEV Model)>REMOVAL
