RM38T0EC _51 Engine / Hybrid System _144959 M20F-FXS, M20G-FXS FUEL _0604273 FUEL PUMP A

M20F-FXS, M20G-FXS FUEL FUEL PUMP REASSEMBLY

CAUTION / NOTICE / HINT

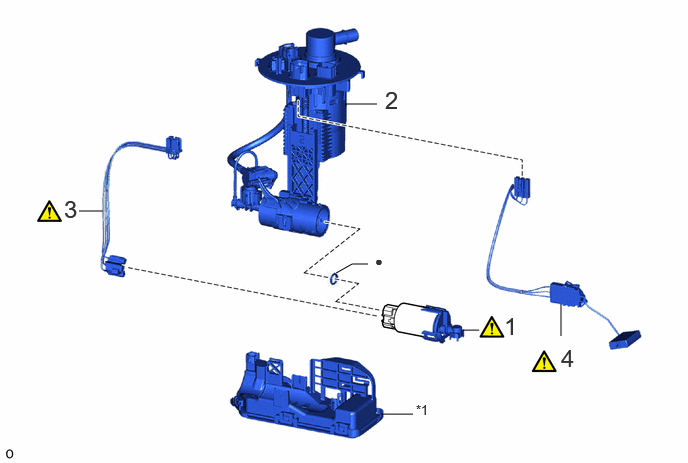

COMPONENTS (REASSEMBLY)

3.594,1.083 3.927,1.083 false 5.844,3.5 5.844,3.167 false 4.823,3.438 4.99,3.438 false 0.823,2.198 1.073,2.198 false 3.5,2.844 3.667,2.75 3.667,2.75 3.833,2.75 false 3.969,4.313 4.302,4.313 false 5.844,3.583 6.125,3.938 0.281,0.354 18 false 4 0.667,2.031 0.948,2.385 0.281,0.354 18 false 3 4.01,0.896 4.292,1.25 0.281,0.354 18 false 2 5.25,3.25 5.531,3.604 0.281,0.354 18 false 1 3.906,2.635 4.063,2.833 0.156,0.198 10 false ● 4.333,4.188 4.563,4.375 0.229,0.188 10 false *1

Procedure		Part Name Code
1	FUEL PUMP	23221	(202307,999999,_51,_144959,_0604273,RM100000002BU3S_01_0017,)	-	-
2	FUEL SUCTION PLATE SUB-ASSEMBLY	77024A	-	-	-
3	WIRE HARNESS	-	(202307,999999,_51,_144959,_0604273,RM100000002BU3S_01_0015,)	-	-
4	FUEL SENDER GAUGE ASSEMBLY	83320	(202307,999999,_51,_144959,_0604273,RM100000002BU3S_01_0014,)	-	-

*1	FUEL SUB-TANK SUB-ASSEMBLY	-	-
●	Non-reusable part	-	-

PROCEDURE

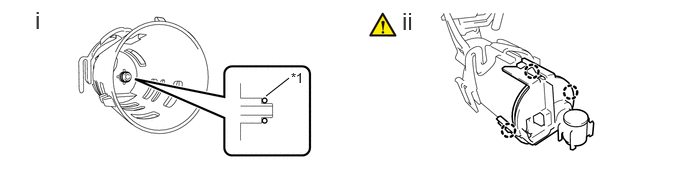

Hide Display 23221 1.INSTALL FUEL PUMP

NOTICE:: Perform "Inspection After Repair" after replacing the fuel pump.; Click here(202307,999999,_51,_144956,_0604911,RM100000002BWPD,)

2.771,1 3.01,0.813 false 0.365,0.063 0.646,0.417 0.281,0.354 18 false i 4.188,0.073 4.469,0.427 0.281,0.354 18 false ii 3.031,0.729 3.344,0.927 0.313,0.198 10 false *1

O-ring

Install a new O-ring to the fuel suction plate sub-assembly.

ii.

Engage the 3 claws to install the fuel pump.

NOTICE:: Make sure that the O-ring is not cut or pinched during installation.

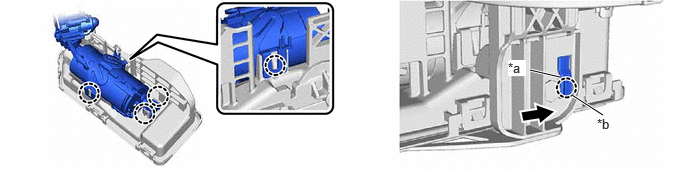

Hide Display 77024A 2.INSTALL FUEL SUCTION PLATE SUB-ASSEMBLY

5.833,0.802 5.521,0.729 true 6.281,1.198 5.958,0.99 true 5.292,0.625 5.479,0.792 0.188,0.167 10 true *a 6.219,1.208 6.396,1.375 0.177,0.167 10 false *b

*a	Protrusion	*b	Installation Hole
	Slide	-	-

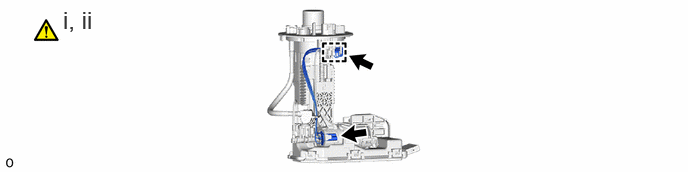

Hide Display 3.INSTALL WIRE HARNESS

NOTICE:: Do not damage the wire harness.

0.656,0.063 1.135,0.427 0.479,0.365 18 false i, ii

Connect the 2 fuel pump harness connectors.

ii.

Engage the clamp to install the fuel pump harness to the fuel suction plate sub-assembly.

NOTICE:: When engaging each wire harness to the clamp, engage one wire at a time.

Hide Display 83320 4.INSTALL FUEL SENDER GAUGE ASSEMBLY

Click here(

202307,999999,_51,_144959,_0604271,RM100000002BTTO_01_0048,)
