M20F-FXS, M20G-FXS FUEL  FUEL PUMP  INSPECTION

0.51,0.729 0.656,0.729 0.656,0.729 1.01,1.156 true 1.24,0.25 1.385,0.25 1.385,0.25 1.719,0.74 true 3.031,0.698 2.802,0.698 2.802,0.698 2.438,1.156 true 0.104,0.042 0.417,0.198 0.313,0.156 10 false *a 3.094,0.635 3.313,0.958 0.219,0.323 10 false W 1.094,0.177 1.313,0.479 0.219,0.302 10 false V 0.313,0.656 0.531,0.906 0.219,0.25 10 false U

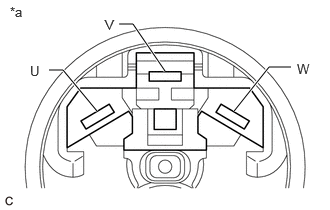

*a	Component without harness connected (Fuel Pump)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Specified Condition
U - V	0.05 to 3.0 Ω
V - W	0.05 to 3.0 Ω
U - W	0.05 to 3.0 Ω

If the result is not as specified, replace the fuel pump.
