M20F-FXS, M20G-FXS FUEL FUEL PUMP DISASSEMBLY

CAUTION / NOTICE / HINT

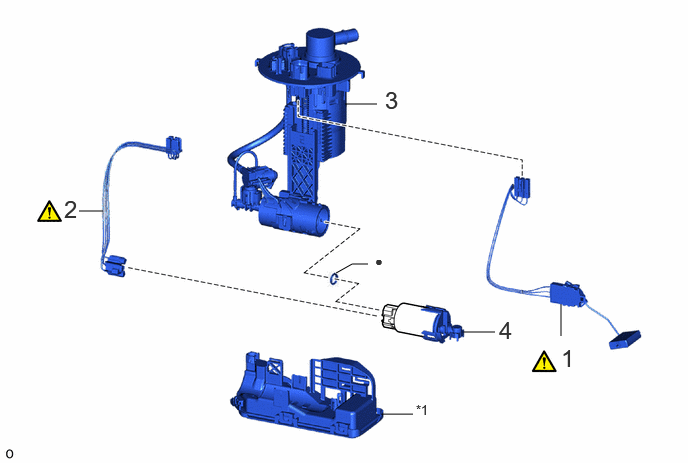

COMPONENTS (DISASSEMBLY)

3.594,1.083 3.927,1.083 false 5.844,3.5 5.844,3.167 false 4.823,3.458 5.156,3.458 false 0.823,2.198 1.073,2.198 false 3.5,2.844 3.667,2.75 3.667,2.75 3.833,2.75 false 3.969,4.313 4.302,4.313 false 5.844,3.583 6.125,3.938 0.281,0.354 18 false 1 0.667,2.031 0.948,2.385 0.281,0.354 18 false 2 4.01,0.896 4.292,1.25 0.281,0.354 18 false 3 5.198,3.292 5.479,3.646 0.281,0.354 18 false 4 3.906,2.635 4.063,2.833 0.156,0.198 10 false ● 4.333,4.188 4.563,4.375 0.229,0.188 10 false *1

Procedure		Part Name Code
1	FUEL SENDER GAUGE ASSEMBLY	83320	(202307,999999,_51,_144959,_0604273,RM100000002BU3Q_01_0019,)	-	-
2	WIRE HARNESS	-	(202307,999999,_51,_144959,_0604273,RM100000002BU3Q_01_0018,)	-	-
3	FUEL SUCTION PLATE SUB-ASSEMBLY	77024A	-	-	-

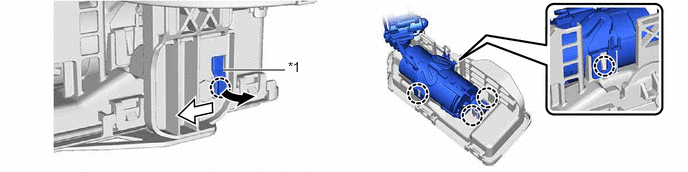

4	FUEL PUMP	23221	-	-	-

*1	FUEL SUB-TANK SUB-ASSEMBLY	-	-
●	Non-reusable part	-	-

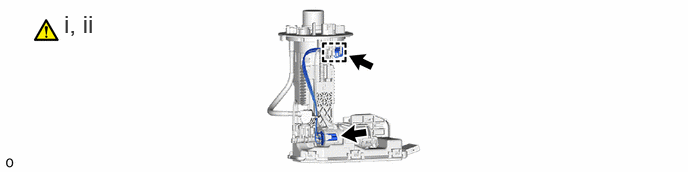

CAUTION / NOTICE / HINT

NOTICE:

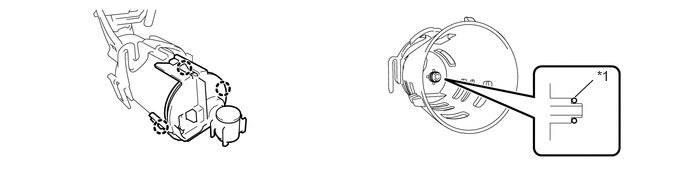

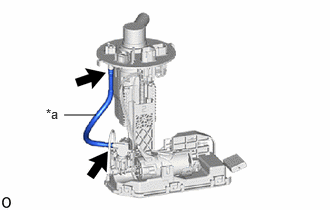

0.667,1.198 1,1.198 false 0.479,1.104 0.792,1.26 0.313,0.156 10 false *a

*a

Tube

Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.
