BATTERY CURRENT SENSOR
A
M20F-FXS, M20G-FXS BATTERY / CHARGING BATTERY CURRENT SENSOR INSTALLATION
CAUTION / NOTICE / HINT

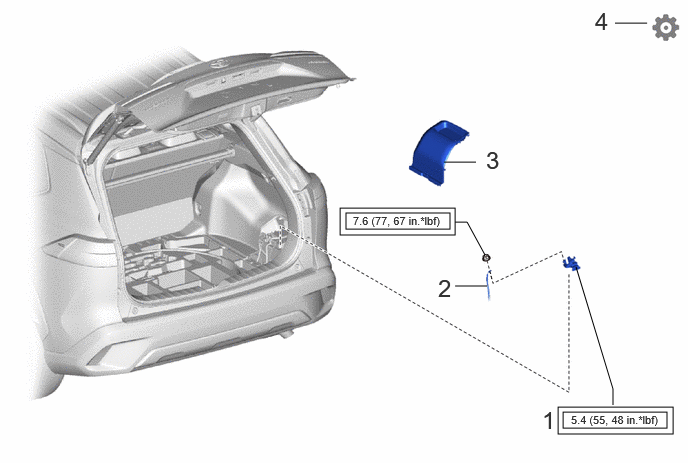

COMPONENTS (INSTALLATION)
3.604,2.219 4.688,2.385
1.083,0.167
5.865,4.292 6.948,4.458
1.083,0.167
5.813,4.24 7.01,4.521
1.198,0.281
3.542,2.167 4.74,2.448
1.198,0.281
6.406,0.24 6.74,0.24
false
4.625,1.688 4.958,1.688
false
6,2.781 6.385,4.052
6.385,4.052 6.385,4.219
false
4.74,2.313 4.865,2.313
4.865,2.313 5.052,2.656
false
4.74,2.979 5.073,2.979
false
6.198,0.073 6.479,0.427
0.281,0.354
18
false
4
5.063,1.521 5.344,1.875
0.281,0.354
18
false
3
5.646,4.229 5.927,4.583
0.281,0.354
18
false
1
3.677,2.229 4.708,2.396
1.031,0.167
8
false
7.6 (77, 67 in.*lbf)
5.948,4.302 6.979,4.469
1.031,0.167
8
false
5.4 (55, 48 in.*lbf)
4.563,2.854 4.844,3.208
0.281,0.354
18
false
2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | BATTERY STATE SENSOR ASSEMBLY | 28850C | - | - | - |
| 2 | NO. 5 FLOOR WIRE | 82164D | - | - | - |
| 2 | BATTERY HOLE COVER | 65351A | - | - | - |
| 3 | INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL | - | - | - | ( 202307,999999,_57,_145000,_0604342,RM100000002BTX1_01_0011,)
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
PROCEDURE
28850C
1.INSTALL BATTERY STATE SENSOR ASSEMBLY
- Torque:
- 5.4 N*m (55 kgf*cm, 48 in.*lbf)
82164D
2.CONNECT NO. 5 FLOOR WIRE
- Torque:
- 7.6 N*m (77 kgf*cm, 67 in.*lbf)
65351A
3.INSTALL BATTERY HOLE COVER
4. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function thatcompletes learning when the respective system is used.
