M20F-FXS, M20G-FXS LUBRICATION  OIL PRESSURE SWITCHING VALVE  INSTALLATION


CAUTION / NOTICE / HINT

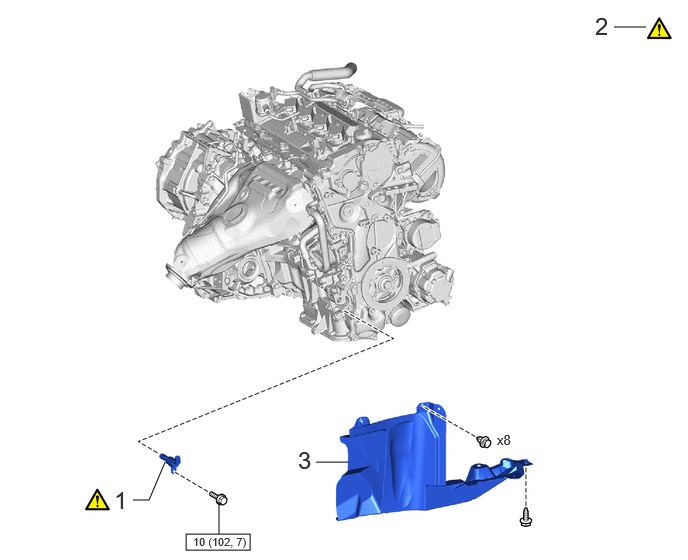

COMPONENTS (INSTALLATION)
A525280N01
1.938,5.563 2.604,5.729 0.667,0.167 3.292,4.813 3.625,4.813 false 1.385,5.208 1.552,5.208 1.552,5.208 1.719,4.813 false 2.281,5.563 2.281,5.229 false 6.396,0.281 6.729,0.281 false 5.177,4.5 5.458,4.854 0.281,0.354 10 false x8 3.104,4.646 3.385,5 0.281,0.354 18 false 3 1.188,5.063 1.469,5.417 0.281,0.354 18 false 1 2.01,5.573 2.802,5.76 0.792,0.188 8 false 10 (102, 7) 6.198,0.125 6.479,0.479 0.281,0.354 18 false 2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 OIL PRESSURE CONTROL VALVE ASSEMBLY 15250 (Click here) - -
2 INSPECT FOR ENGINE OIL LEAK - (Click here) - -
3 REAR ENGINE UNDER COVER RH 51443C - - -

V100146

N*m (kgf*cm, ft.*lbf): Specified torque - -

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

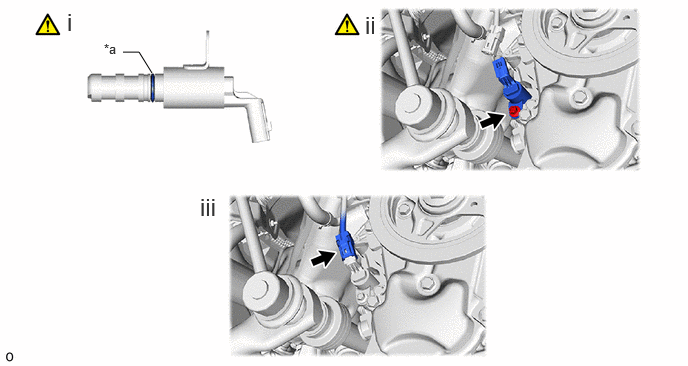

Hide 15250 1.INSTALL OIL PRESSURE CONTROL VALVE ASSEMBLY

a.
A522673C01
1.281,0.542 1.448,0.542 1.448,0.542 1.583,0.76 false 0.698,0.083 0.979,0.438 0.281,0.354 18 false i 3.802,0.115 4.083,0.469 0.281,0.354 18 false ii 2.083,2.01 2.49,2.417 0.406,0.406 18 false iii 1.083,0.427 1.365,0.781 0.281,0.354 10 false *a
*a O-Ring - -


i.

Apply a small amount of engine oil to the O-ring of the oil pressure control valve assembly.


ii.

Using an 8 mm socket wrench, install the oil pressure control valve assembly to the No. 2 timing chain cover assembly with the bolt.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)

NOTICE:
·

When reusing the oil pressure control valve assembly, inspect the O-ring.

·

Make sure that the O-ring is not cracked or does not move out of place during installation.




iii.

Connect the oil pressure control valve assembly connector.



Hide 2.INSPECT FOR ENGINE OIL LEAK

Z101186

Click here(Click here)
