M20F-FXS, M20G-FXS LUBRICATION  OIL PRESSURE SWITCHING VALVE  INSPECTION

0.906,1.865 1.094,1.865 1.094,1.865 1.542,1.281 true 2.5,1.865 2.323,1.865 2.323,1.865 1.885,1.281 true 0.073,0.073 0.396,0.323 0.323,0.25 10 false *a 0.813,1.76 0.969,1.958 0.156,0.198 10 false 1 2.542,1.771 2.698,1.969 0.156,0.198 10 false 2

*a	Component without harness connected (Oil Pressure Control Valve Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 2	20°C (68°F)	6.2 to 8.2 Ω

If the result is not as specified, replace the oil pressure control valve assembly.

0.813,1.365 1.031,1.365 1.031,1.365 1.521,0.896 true 2.698,1.375 2.49,1.375 2.49,1.375 1.906,0.896 true 0.083,0.094 0.396,0.25 0.313,0.156 10 false *a 0.708,1.271 0.865,1.469 0.156,0.198 10 false 1 2.729,1.281 2.885,1.479 0.156,0.198 10 false 2

*a	Component without harness connected (Oil Pressure Control Valve Assembly)

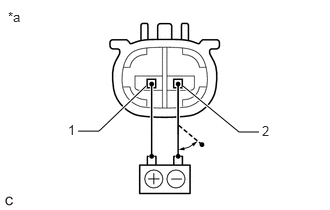

Connect an auxiliary battery positive (+) lead to terminal 1 and a negative (-) lead to terminal 2.

Check that a clicking sound is heard from the oil pressure control valve assembly.

NOTICE:

·

Check that the auxiliary battery voltage is between 10 and 16 V before performing this test.

·

Perform this test within 10 seconds to prevent the coil from burning out.

·

Always switch the voltage on and off at the auxiliary battery side, not the oil pressure control valve assembly side.

If the result is not as specified, replace the oil pressure control valve assembly.
