☰ Toyota Frontlander☰ فهرستEngine / Hybrid System › M20F-FXS, M20G-FXS LUBRICATION › OIL PRESSURE SWITCHING VALVE
RM38T0EC
_51
Engine / Hybrid System
_144998
M20F-FXS, M20G-FXS LUBRICATION
_0604333
OIL PRESSURE SWITCHING VALVE
A
M20F-FXS, M20G-FXS LUBRICATION OIL PRESSURE SWITCHING VALVE REMOVAL
CAUTION / NOTICE / HINT

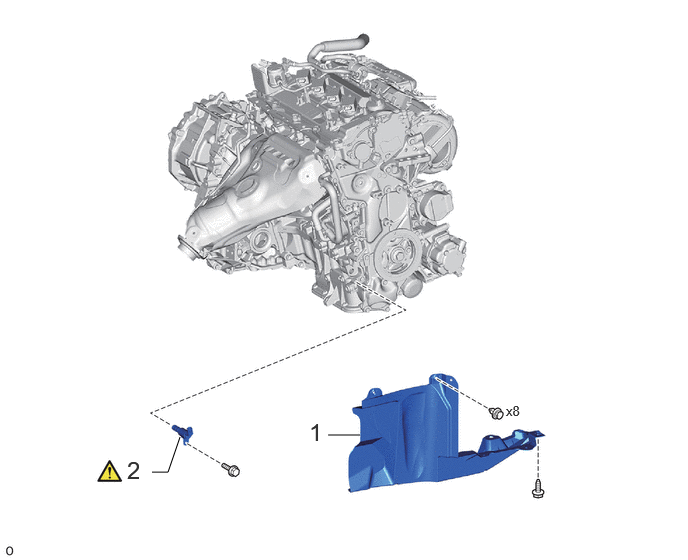

COMPONENTS (REMOVAL)
3.417,4.531 3.75,4.531
false
1.583,4.917 1.75,4.917
1.75,4.917 1.875,4.552
false
5.271,4.198 5.552,4.552
0.281,0.354
10
false
x8
3.219,4.354 3.5,4.708
0.281,0.354
18
false
1
1.323,4.75 1.604,5.104
0.281,0.354
18
false
2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | REAR ENGINE UNDER COVER RH | 51443C | - | - | - |
| 2 | OIL PRESSURE CONTROL VALVE ASSEMBLY | 15250 | ( 202307,999999,_51,_144998,_0604333,RM100000002BTWG_01_0006,)
|
- | - |
CAUTION / NOTICE / HINT
- NOTICE:
-
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
PROCEDURE
51443C
1.REMOVE REAR ENGINE UNDER COVER RH
15250
2.REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY

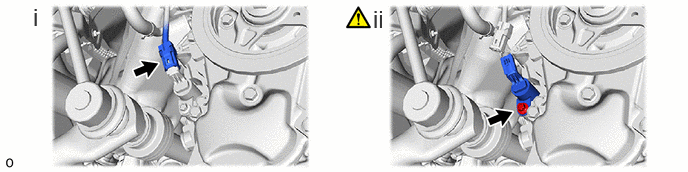

a.
0.344,0.031 0.625,0.385
0.281,0.354
18
false
i
3.885,0.052 4.167,0.406
0.281,0.354
18
false
ii
i.
Disconnect the oil pressure control valve assembly connector.
ii.
Using an 8 mm socket wrench, remove the bolt and oil pressure control valve assembly from the No. 2 timing chain cover assembly.
