M20F-FXS, M20G-FXS LUBRICATION  OIL PRESSURE AND TEMPERATURE SENSOR  INSPECTION

0.917,0.333 1.083,0.333 1.083,0.333 1.552,0.719 false 1.813,0.729 2.333,0.333 2.333,0.333 2.5,0.333 false 0.052,0.052 0.281,0.271 0.229,0.219 10 false *a 1.813,1.781 2,1.969 0.188,0.188 10 false *b 0.656,0.26 0.969,0.458 0.313,0.198 10 false VC 2.573,0.26 2.885,0.458 0.313,0.198 10 false GND

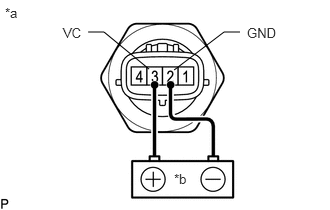

*a	Component without harness connected (Oil Pressure and Temperature Sensor)
*b	Voltage Applied between Terminals

Apply 5 V between terminals 3 (VC) and 2 (GND).

NOTICE:

·

Be careful when connecting the leads as the oil pressure and temperature sensor may be damaged if the leads are connected to the wrong terminals.

·

Do not apply more than 6 V to terminals 3 (VC) or 2 (GND).

HINT:

If a stable power supply is not available, connect 4 nickel-metal hydride batteries (1.2 V each) or equivalent in series.

1.115,1.51 1.531,1.094 true 2.24,1.479 1.854,1.083 true 0.052,0.063 0.365,0.26 0.313,0.198 10 false *a 0.74,1.417 1.146,1.646 0.406,0.229 10 false TOUT 2.302,1.427 2.708,1.656 0.406,0.229 10 false GND

*a	Component without harness connected (Oil Pressure and Temperature Sensor)

Measure the voltage between terminals.

Standard Voltage:

Tester Connection	Condition	Specified Condition
4 (TOUT) - 2 (GND)	20°C (68°F)	Approximately 1.5 to 2.5 V*

*: The output voltage changes depending on the voltage applied to the terminals.

If the result is not as specified, replace the oil pressure and temperature sensor.
