M20F-FXS, M20G-FXS LUBRICATION  OIL PRESSURE AND TEMPERATURE SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

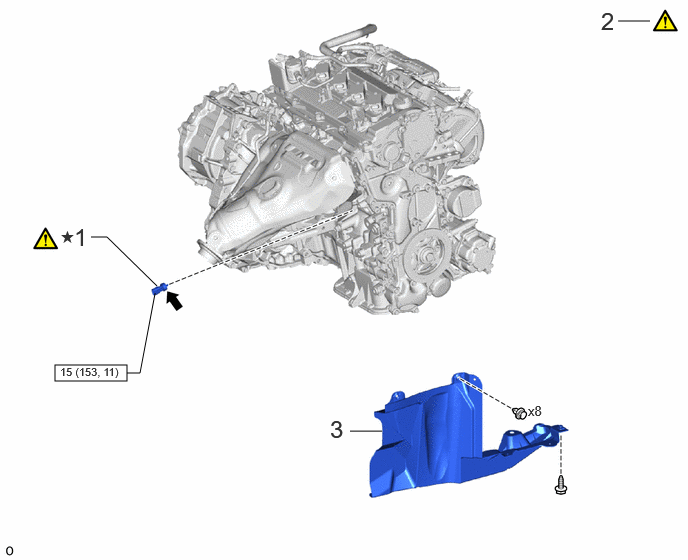

COMPONENTS (INSTALLATION)
A545643N01
0.573,3.802 1.323,3.969 0.75,0.167 1.635,2.979 1.115,2.469 1.115,2.469 0.948,2.469 false 1.323,3.885 1.458,3.885 1.458,3.885 1.615,3.052 false 3.646,4.49 3.979,4.49 false 6.438,0.219 6.771,0.219 false 0.771,2.323 1.052,2.677 0.281,0.354 18 false 1 3.438,4.323 3.719,4.677 0.281,0.354 18 false 3 0.635,2.385 0.917,2.74 0.281,0.354 10 false ★ 5.5,4.198 5.781,4.552 0.281,0.354 10 false x8 0.625,3.802 1.396,3.979 0.771,0.177 8 false 15 (153, 11) 6.26,0.073 6.542,0.427 0.281,0.354 18 false 2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 OIL PRESSURE AND TEMPERATURE SENSOR 89448D (Click here) - -
2 INSPECT FOR ENGINE OIL LEAK - (Click here) - -
3 REAR ENGINE UNDER COVER RH 51443C - - -

V100146

N*m (kgf*cm, ft.*lbf): Specified torque
V100135

Adhesive 1344
★ Precoated part - -

PROCEDURE

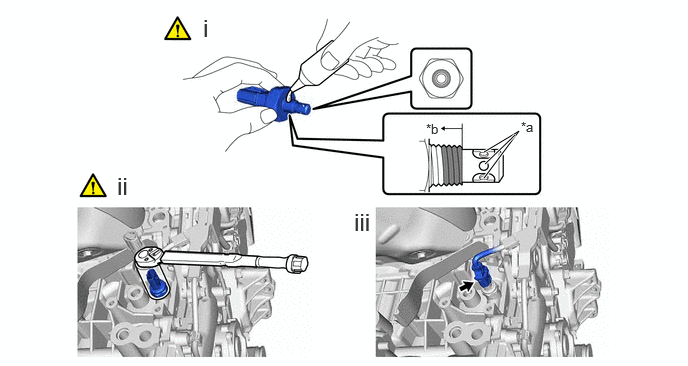

Hide 89448D 1.INSTALL OIL PRESSURE AND TEMPERATURE SENSOR

a.
A465711C02
5.042,1.583 5.406,1.365 5.406,1.365 5.042,1.854 true 5.052,1.708 5.365,1.406 true 5.427,1.24 5.74,1.438 0.313,0.198 10 false *a 4.438,1.26 4.75,1.458 0.313,0.198 10 false *b 2.115,0.146 2.396,0.5 0.281,0.354 18 false i 1.219,1.792 1.5,2.146 0.281,0.354 18 false ii 3.688,2.167 3.969,2.521 0.281,0.354 18 false iii
*a Oil Inlet Port *b 3 Threads or More
V100144

Adhesive Application Area - -


i.

Apply adhesive to the area shown in the illustration.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent


NOTICE:
·

Do not apply adhesive to the oil inlet port of the oil pressure and temperature sensor.

·

Apply the adhesive to the first 3 threads or more of the oil pressure and temperature sensor.

·

Apply adhesive to the entire circumference of the thread.

·

To prevent contamination by foreign matter, install immediately after applying adhesive.




ii.

Using a 24 mm deep socket wrench, install the oil pressure and temperature sensor.

Torque:
15 N*m (153 kgf*cm, 11 ft.*lbf)

NOTICE:

Do not start the engine within 1 hour of installation.



iii.

Connect the oil pressure and temperature sensor connector.



Hide 2.INSPECT FOR ENGINE OIL LEAK
