RM38T0EC _51 Engine / Hybrid System _144996 M20F-FXS, M20G-FXS EMISSION CONTROL _0604314 EXHAUST GAS TEMPERATURE SENSOR(for Front) A

M20F-FXS, M20G-FXS EMISSION CONTROL  EXHAUST GAS TEMPERATURE SENSOR(for Front)  INSTALLATION


CAUTION / NOTICE / HINT

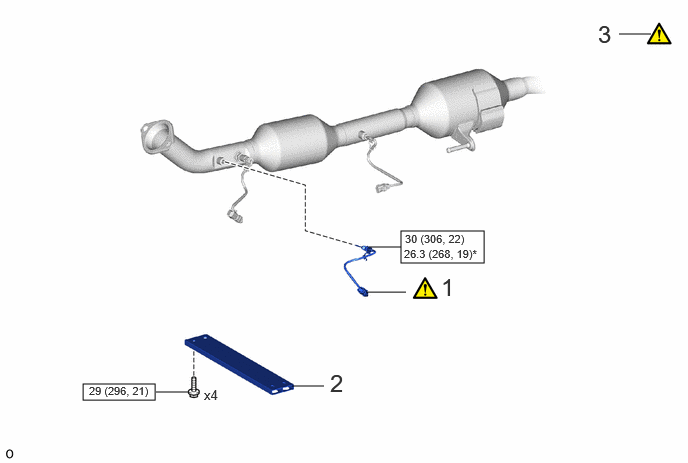

COMPONENTS (INSTALLATION)
A545607N01
0.865,4 1.615,4.167 0.75,0.167 4.177,2.406 5.042,2.74 0.865,0.333 1.625,4.083 1.958,4.083 false 3.042,4.021 3.375,4.021 false 3.813,3.042 4.229,3.042 false 3.844,2.573 4.177,2.573 false 6.448,0.354 6.781,0.354 false 6.229,0.208 6.781,0.563 0.552,0.354 18 false 3 4.594,2.844 5.146,3.198 0.552,0.354 18 false 1 3.438,3.844 3.99,4.198 0.552,0.354 18 false 2 2.125,4.031 2.438,4.229 0.313,0.198 10 false x4 0.927,4 2.396,4.156 1.469,0.156 8 false 29 (296, 21) 4.219,2.417 5.688,2.573 1.469,0.156 8 false 30 (306, 22) 4.208,2.573 5.677,2.729 1.469,0.156 8 false 26.3 (268, 19)*

Procedure Part Name Code
Z101186

Z101188

Z101187

1 EXHAUST GAS TEMPERATURE SENSOR 89425 (Click here) - -
2 FRONT FLOOR CENTER BRACE 5733B - - -
3 INSPECT FOR EXHAUST GAS LEAK - (Click here) - -

V100146

N*m (kgf*cm, ft.*lbf): Specified torque * For use with union nut wrench

PROCEDURE

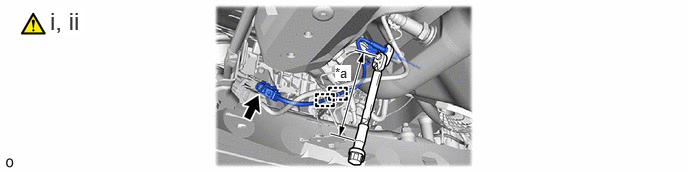

Hide 89425 1.INSTALL EXHAUST GAS TEMPERATURE SENSOR

a.
A545609C01
3.49,0.677 3.656,0.844 0.167,0.167 10 true *a 0.521,0.073 0.885,0.365 0.365,0.292 18 true i, ii
*a Torque Wrench Fulcrum Length - -


i.

Using a 14 mm union nut wrench, install the exhaust gas temperature sensor.

NOTICE:

If the exhaust gas temperature sensor is dropped, replace it with a new one.


Torque:
30 N*m (306 kgf*cm, 22 ft.*lbf)

HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a union nut wrench (fulcrum length of 25 mm (0.984 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 26.3 N*m (268 kgf*cm, 19 ft.*lbf)




ii.

Install the 2 clamp and connect the exhaust gas temperature sensor connector.



Hide 57533B 2.INSTALL FRONT FLOOR CENTER BRACE

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)
