M20F-FXS, M20G-FXS EMISSION CONTROL  PCV VALVE  ON-VEHICLE INSPECTION


PROCEDURE

Hide 12204C 1.INSPECT PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

a.

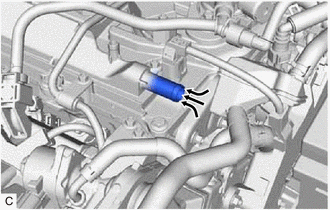

A433471

Check the PCV valve (ventilation valve sub-assembly) operation.

i.

Start the engine.


ii.

Slide the clip and disconnect the No. 2 ventilation hose from the air cleaner hose assembly.


iii.

Check that air is sucked into the No. 2 ventilation hose.

Standard:

Air is sucked into the No. 2 ventilation hose.


If the result is not as specified, replace the PCV valve (ventilation valve sub-assembly).
