RM38T0EC
_51
Engine / Hybrid System
_144996
M20F-FXS, M20G-FXS EMISSION CONTROL
_0604313
PCV VALVE
A
M20F-FXS, M20G-FXS EMISSION CONTROL PCV VALVE INSTALLATION
CAUTION / NOTICE / HINT

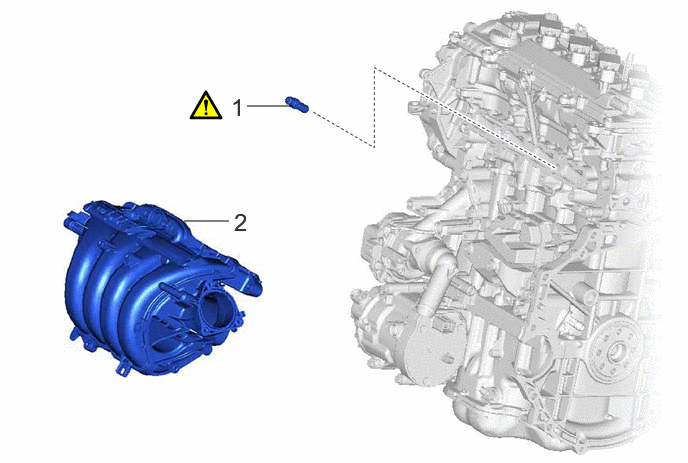

COMPONENTS (INSTALLATION)
2.573,1.104 3.042,1.104
false
1.917,2.302 2.385,2.302
false
2.406,0.969 2.688,1.323
0.281,0.354
18
false
1
2.438,2.167 2.719,2.521
0.281,0.354
18
false
2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) | 12204C | ( 202307,999999,_51,_144996,_0604313,RM100000002BTV0_01_0009,)
|
- | - |
| 2 | INTAKE MANIFOLD | 17111 | - | - | - |
CAUTION / NOTICE / HINT
- NOTICE:
-
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
PROCEDURE
12204C
1.INSTALL PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
a.
0.542,0.115 1.208,0.625
0.667,0.51
18
false
i
3.594,0.073 4.26,0.583
0.667,0.51
18
false
ii
i.
Apply a light coat of engine oil to the O-ring.
- NOTICE:
-
When reusing the PCV valve (ventilation valve sub-assembly), inspect the O-ring.
ii.
Install the PCV valve (ventilation valve sub-assembly) to the cylinder head sub-assembly.
17111
2.INSTALL INTAKE MANIFOLD
