Engine / Hybrid System
_144996
M20F-FXS, M20G-FXS EMISSION CONTROL
_0604309
PURGE VALVE
G
M20F-FXS, M20G-FXS EMISSION CONTROL PURGE VALVE INSPECTION
PROCEDURE
25860
1.INSPECT PURGE VALVE (PURGE VSV)
a.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 23 to 26 Ω
If the result is not as specified, replace the purge valve (purge VSV).
b.
1.635,1.51 1.635,1.927
true
0.844,1.458 0.844,1.875
true
1.583,1.927 1.771,2.125
0.188,0.198
10
false
*a
0.781,1.917 1,2.135
0.219,0.219
10
false
*b
2.177,1.948 2.375,2.135
0.198,0.188
10
false
*c
2.469,0.052 2.698,0.24
0.229,0.188
10
false
*d
| *a | Port (E) |
| *b | Port (F) |
| *c | Air |
| *d | Component without harness connected
(Purge Valve (Purge VSV)) |

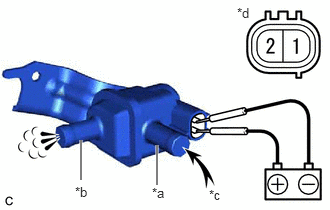

Apply battery voltage between the terminals of the purge valve (purge VSV) and check that the following occurs when blowing air into the port (E).
- OK:
Condition Specified Condition Battery voltage applied between terminals 1 and 2 Air flows from port (F) Battery voltage not applied between terminals 1 and 2 Air does not flow
If the result is not as specified, replace the purge valve (purge VSV).
