M20F-FXS, M20G-FXS EMISSION CONTROL  EGR VALVE  INSPECTION

1.958,0.938 2.531,0.938 true 1.979,1.26 2.563,1.26 true 0.865,0.948 1.458,0.948 true 0.854,1.271 1.448,1.271 true 2.583,0.854 3.052,1.052 0.469,0.198 10 false EGA+ 2.594,1.177 3.063,1.375 0.469,0.198 10 false EGB- 0.469,0.854 0.938,1.052 0.469,0.198 10 false EGA- 0.448,1.188 0.917,1.385 0.469,0.198 10 false EGB+ 0.094,0.115 0.385,0.354 0.292,0.24 10 false *a

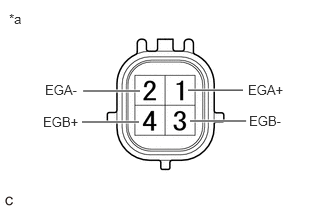

*a	Component without wire harness connected (EGR Valve Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 (EGA+) - 2 (EGA-)	20°C (68°F)	3.1 to 3.7 Ω
3 (EGB-) - 4 (EGB+)

If the result is not as specified, replace the EGR valve assembly.
