M20F-FXS, M20G-FXS FUEL
_0604292
FUEL MAIN VALVE
A
M20F-FXS, M20G-FXS FUEL FUEL MAIN VALVE INSTALLATION
CAUTION / NOTICE / HINT

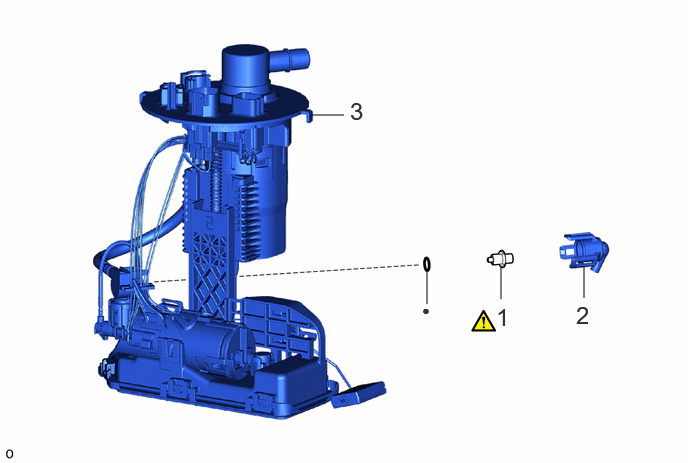

COMPONENTS (INSTALLATION)
3.25,1.198 3.583,1.198
false
4.448,2.833 4.448,3.167
false
5.219,2.781 5.219,3.115
false
6.083,2.771 6.083,3.104
false
3.646,1.01 3.927,1.365
0.281,0.354
18
false
3
5.167,3.156 5.448,3.51
0.281,0.354
18
false
1
6,3.135 6.281,3.49
0.281,0.354
18
false
2
4.396,3.146 4.594,3.354
0.198,0.208
10
false
●
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | FUEL MAIN VALVE ASSEMBLY | 23070 | ( 202307,999999,_51,_144959,_0604292,RM100000002BTTX_01_0012,)
|
- | - |
| 2 | NO.2 FUEL SUCTION SUPPORT | 77175 | - | - | - |
| 3 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | 77020A | - | - | - |
| ● | Non-reusable part | - | - |
PROCEDURE
23070

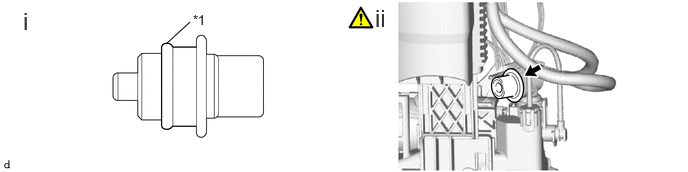

1.INSTALL FUEL MAIN VALVE ASSEMBLY
a.
1.729,0.458 1.979,0.229
false
2.01,0.125 2.323,0.281
0.313,0.156
10
false
*1
0.24,0.073 0.521,0.427
0.281,0.354
18
false
i
3.906,0.042 4.188,0.396
0.281,0.354
18
false
ii
| *1 | O-ring | - | - |
i.
Apply gasoline to a new O-ring. Then install the O-ring to the fuel main valve assembly.
ii.
Install the fuel main valve assembly to the fuel suction tube with pump and gauge assembly.
- NOTICE:
-
Make sure that the O-ring is not cut or pinched during installation.
77175
2.INSTALL NO.2 FUEL SUCTION SUPPORT
77020A
3.INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
