RM38T0EC _51 Engine / Hybrid System _144959 M20F-FXS, M20G-FXS FUEL _0604271 FUEL SENDER GAUGE ASSEMBLY A

M20F-FXS, M20G-FXS FUEL  FUEL SENDER GAUGE ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

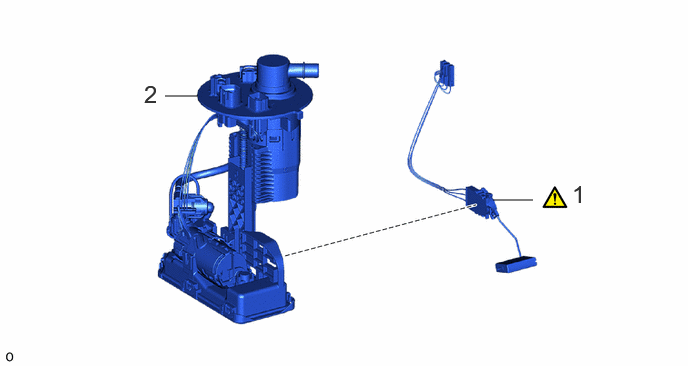

COMPONENTS (INSTALLATION)
A545598N02
1.719,1 2.052,1 false 5.135,2.083 5.552,2.083 false 1.5,0.833 1.781,1.188 0.281,0.354 18 false 2 5.958,1.875 6.24,2.229 0.281,0.354 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FUEL SENDER GAUGE ASSEMBLY 83320 (Click here) - -
2 FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY 77020A - - -

PROCEDURE

Hide 83320 1.INSTALL FUEL SENDER GAUGE ASSEMBLY

a.
A545599C01
5.01,1.417 4.406,1.073 4.406,1.073 5.01,0.99 true 5.844,1.031 6.125,0.531 true 1.792,0.771 2.229,0.25 true 1.135,2.083 1.604,1.854 true 0.521,0.115 1.281,0.417 0.76,0.302 18 false i, ii, iii 2.281,0.188 2.594,0.385 0.313,0.198 10 false *a 0.948,1.99 1.26,2.188 0.313,0.198 10 false *a 6.177,0.427 6.49,0.625 0.313,0.198 10 false *a 4.229,0.99 4.542,1.188 0.313,0.198 10 false *b
*a Clamp *b Guide


i.

Engage the 2 guides and claw to install the fuel sender gauge assembly to the fuel suction tube with pump and gauge assembly.

NOTICE:

Be careful not to bend the arm of the fuel sender gauge assembly.



ii.

Engage the 3 clamps to connect the wire harness to the fuel suction tube with pump and gauge assembly.

NOTICE:
·

Do not damage the wire harness.

·

When engaging each wire harness to the clamp, engage one wire at a time.




iii.

Connect the fuel sender gauge assembly connector.
