RM38T0EC _51 Engine / Hybrid System _144958 M20F-FXS, M20G-FXS ENGINE MECHANICAL _0604260 FRONT CRANKSHAFT OIL SEAL A

M20F-FXS, M20G-FXS ENGINE MECHANICAL  FRONT CRANKSHAFT OIL SEAL  REMOVAL


CAUTION / NOTICE / HINT

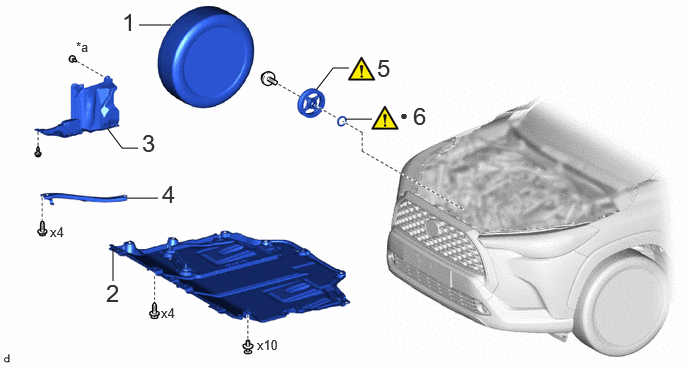

COMPONENTS (REMOVAL)
A528408N01
3.292,0.938 3.469,0.708 3.469,0.708 3.635,0.708 false 1.115,1.333 1.271,1.542 1.271,1.542 1.438,1.542 false 3.604,1.24 3.875,1.24 false 1.313,2.063 1.646,2.063 false 1.448,0.26 1.781,0.26 false 1.177,2.927 1.177,2.594 false 3.927,0.563 4.208,0.917 0.281,0.354 18 false 5 4.167,1.115 4.448,1.469 0.281,0.354 10 false ● 4.302,1.063 4.583,1.417 0.281,0.354 18 false 6 1.688,1.875 1.969,2.229 0.281,0.354 18 false 4 1.479,1.344 1.76,1.698 0.281,0.354 18 false 3 1.271,0.083 1.552,0.438 0.281,0.354 18 false 1 0.792,0.406 1.073,0.76 0.281,0.354 10 false *a 0.521,2.333 0.802,2.688 0.281,0.354 10 false x4 1.677,3.177 1.958,3.531 0.281,0.354 10 false x4 2.677,3.51 3.104,3.729 0.427,0.219 10 false x10 1.104,2.906 1.385,3.26 0.281,0.354 18 false 2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 WHEEL ASSEMBLY - - - -
2 NO. 1 ENGINE UNDER COVER ASSEMBLY 51410 - - -
3 REAR ENGINE UNDER COVER RH 51443C - - -
4 REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH 51107A - - -
5 CRANKSHAFT PULLEY ASSEMBLY 13470 (Click here) - -
6 TIMING CHAIN COVER OIL SEAL 11301C (Click here) - -

● Non-reusable part - -
*a Type A: x4
Type B: x5 		- -

PROCEDURE

Hide 13470 5.REMOVE CRANKSHAFT PULLEY ASSEMBLY

Z101186

Click here(Click here)

Hide 11301C 6.REMOVE TIMING CHAIN COVER OIL SEAL

a.
A529151N01
0.552,0.115 0.833,0.469 0.281,0.354 18 false i

i.

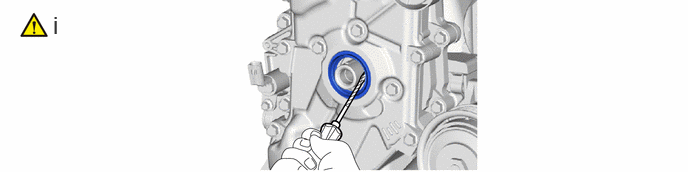

Using a screwdriver, pry out the timing chain cover oil seal.

NOTICE:

Do not damage the surface of the timing chain cover oil seal press fit hole or the crankshaft.


HINT:

Tape the screwdriver tip before use.
