RM38T0EC _51 Engine / Hybrid System _144958 M20F-FXS, M20G-FXS ENGINE MECHANICAL _0604260 FRONT CRANKSHAFT OIL SEAL A

M20F-FXS, M20G-FXS ENGINE MECHANICAL  FRONT CRANKSHAFT OIL SEAL  INSTALLATION


CAUTION / NOTICE / HINT

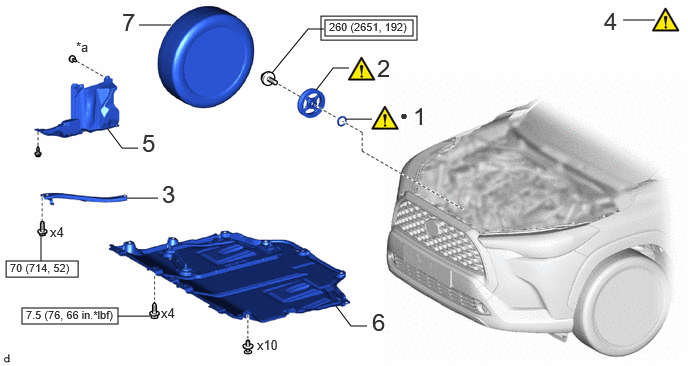

COMPONENTS (INSTALLATION)
A528409N01
0.229,3.208 1.229,3.375 1,0.167 0.063,2.719 0.813,2.885 0.75,0.167 3.385,0.208 4.302,0.375 0.917,0.167 3.344,0.167 4.344,0.417 1,0.25 3.292,0.938 3.469,0.708 3.469,0.708 3.635,0.708 false 1.115,1.333 1.271,1.542 1.271,1.542 1.438,1.542 false 3.604,1.24 3.875,1.24 false 1.313,2.063 1.646,2.063 false 1.448,0.26 1.781,0.26 false 6.49,0.208 6.823,0.208 false 1.229,3.292 1.563,3.292 false 0.427,2.719 0.427,2.448 false 3.5,3.188 3.656,3.396 3.656,3.396 3.823,3.396 false 2.833,0.76 3.208,0.302 3.208,0.302 3.375,0.302 false 3.927,0.563 4.208,0.917 0.281,0.354 18 false 2 4.167,1.115 4.448,1.469 0.281,0.354 10 false ● 4.302,1.063 4.583,1.417 0.281,0.354 18 false 1 1.688,1.875 1.969,2.229 0.281,0.354 18 false 3 1.479,1.344 1.76,1.698 0.281,0.354 18 false 5 1.271,0.083 1.552,0.438 0.281,0.354 18 false 7 0.792,0.406 1.073,0.76 0.281,0.354 10 false *a 0.521,2.333 0.802,2.688 0.281,0.354 10 false x4 1.677,3.177 1.958,3.531 0.281,0.354 10 false x4 2.677,3.51 3.104,3.729 0.427,0.219 10 false x10 3.875,3.208 4.156,3.563 0.281,0.354 18 false 6 6.292,0.073 6.573,0.427 0.281,0.354 18 false 4 0.271,3.208 1.5,3.438 1.229,0.229 8 false 7.5 (76, 66 in.*lbf) 0.104,2.719 1.333,2.948 1.229,0.229 8 false 70 (714, 52) 3.427,0.208 4.656,0.438 1.229,0.229 8 false 260 (2651, 192)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 TIMING CHAIN COVER OIL SEAL 11301C (Click here) - -
2 CRANKSHAFT PULLEY ASSEMBLY 13470 (Click here) - -
3 REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH 51107A - - -
4 INSPECT FOR ENGINE OIL LEAK - (Click here) - -
5 REAR ENGINE UNDER COVER RH 51443C - - -
6 NO. 1 ENGINE UNDER COVER ASSEMBLY 51410 - - -
7 WHEEL ASSEMBLY - - - -

V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)
V100146

N*m (kgf*cm, ft.*lbf): Specified torque
● Non-reusable part - -
*a Type A: x4
Type B: x5 		- -

PROCEDURE

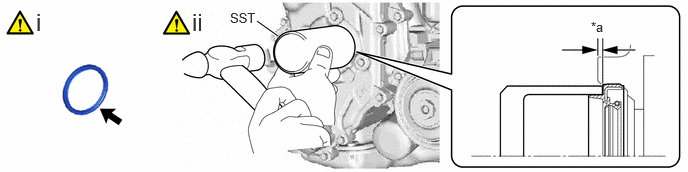

Hide 11301C 1.INSTALL TIMING CHAIN COVER OIL SEAL

a.
A528219C02
2.677,0.219 2.896,0.375 true 2.396,0.104 2.854,0.302 0.458,0.198 10 false SST 6.156,0.198 6.385,0.406 0.229,0.208 10 false *a 0.375,0.083 0.656,0.438 0.281,0.354 18 false i 2,0.083 2.281,0.438 0.281,0.354 18 false ii
*a 0 to 2 mm - -


i.

Apply MP grease to the lip of a new timing chain cover oil seal.

NOTICE:
·

Keep the lip free from foreign matter.

·

Do not allow MP grease to contact the dust seal.




ii.

Using SST and a hammer, tap in the timing chain cover oil seal.

SST
09223-00010

Standard Depth:

0 to 2 mm (0 to 0.0787 in.) (From the edge of the No. 2 timing chain cover assembly)


NOTICE:

Do not tap in the timing chain cover oil seal at an angle.




Hide 13470 2.INSTALL CRANKSHAFT PULLEY ASSEMBLY

Z101186

Click here(Click here)

Hide 4.INSPECT FOR ENGINE OIL LEAK

Z101186

Click here(Click here)
