RM38T0EC _V1 General _104397 MAINTENANCE _0604253 BATTERY COOLING FILTER A

MAINTENANCE BATTERY COOLING FILTER REMOVAL

CAUTION / NOTICE / HINT

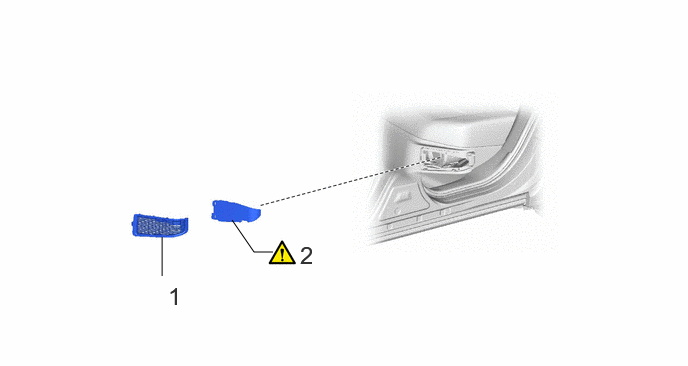

COMPONENTS (REMOVAL)

2.417,2.292 2.646,2.625 2.646,2.625 2.844,2.625 false 1.688,2.875 1.688,2.469 false 3.125,2.51 3.406,2.865 0.281,0.354 18 false 2 1.75,2.938 2.031,3.292 0.281,0.354 18 false 1

Procedure		Part Name Code
1	BATTERY SERVICE HOLE COVER	-	-	-	-
2	NO. 1 HV BATTERY INTAKE FILTER	G92DH	(202307,999999,_V1,_104397,_0604253,RM100000002BTS6_01_0002,)	-	-

PROCEDURE

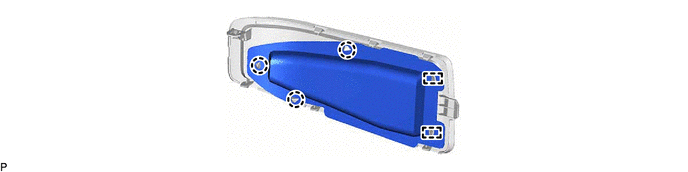

Hide Display 1.REMOVE BATTERY SERVICE HOLE COVER

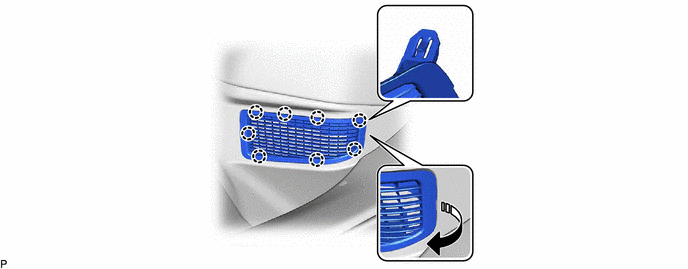

Hide Display G92DH 2.REMOVE NO. 1 HV BATTERY INTAKE FILTER

HINT:: If the message "Maintenance Required for Traction Battery Cooling Parts See Owner's Manual" is displayed on the multi-information display, inspect the No. 1 HV battery intake filter.; Click here(202307,999999,_V1,_104397,_0604253,RM100000002BTS7,)
