HYBRID / BATTERY CONTROL  COMBINATION SWITCH  INSPECTION

1.5,0.115 1.844,0.365 0.344,0.25 0.594,1.927 0.865,1.927 0.865,1.927 1.406,1.51 true 2.698,1.927 2.49,1.927 2.49,1.927 2.042,1.521 true 0.063,0.042 0.375,0.198 0.313,0.156 10 false *a 2.74,1.844 3.219,2.031 0.479,0.188 10 false E 0.458,1.833 0.708,2.052 0.25,0.219 10 false S 1.583,0.146 2.042,0.344 0.458,0.198 10 false I61

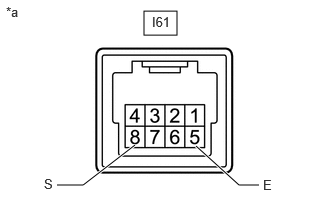

*a	Component without harness connected (EV Drive Mode Switch (Combination Switch Assembly))

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
I61-8 (S) - I61-5 (E)	EV drive mode switch (combination switch assembly) being pushed and held	Below 50 Ω
	EV drive mode switch (combination switch assembly) not pushed	10 kΩ or higher

If the result is not as specified, replace the EV drive mode switch (combination switch assembly).

1.5,0.104 1.823,0.344 0.323,0.24 0.708,0.292 0.979,0.292 0.979,0.292 1.396,1.125 true 2.698,0.292 2.448,0.292 2.448,0.292 2.031,1.125 true 0.042,0.042 0.354,0.198 0.313,0.156 10 false *a 0.365,0.208 0.979,0.406 0.615,0.198 10 false ILL+ 2.792,0.219 3.406,0.417 0.615,0.198 10 false ILL- 1.563,0.135 2.021,0.333 0.458,0.198 10 false I61

*a	Component without harness connected (EV Drive Mode Switch (Combination Switch Assembly))

Apply auxiliary battery voltage between the terminals of the switch, and check the illumination condition of the EV drive mode switch (combination switch assembly).

Standard:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → I61-4 (ILL+) Auxiliary battery negative (-) → I61-1 (ILL-)	Illuminates

If the result is not as specified, replace the EV drive mode switch (combination switch assembly).

1.521,0.135 1.823,0.396 0.302,0.26 1.021,1.927 1.271,1.927 1.271,1.927 1.813,1.51 true 2.698,1.927 2.49,1.927 2.49,1.927 2.042,1.521 true 0.063,0.042 0.375,0.198 0.313,0.156 10 false *a 2.74,1.844 3.219,2.031 0.479,0.188 10 false E 0.688,1.844 1.042,2.052 0.354,0.208 10 false DRV 1.594,0.177 2.052,0.375 0.458,0.198 10 false I61

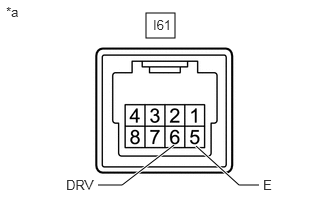

*a	Component without harness connected (Drive Mode Select Switch (Combination Switch Assembly))

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
I61-6 (DRV) - I61-5 (E)	Drive mode select switch (combination switch assembly) being pushed and held	Below 50 Ω
	Drive mode select switch (combination switch assembly) not pushed	10 kΩ or higher

If the result is not as specified, replace the drive mode select switch (combination switch assembly).

1.5,0.104 1.823,0.344 0.323,0.24 0.708,0.292 0.979,0.292 0.979,0.292 1.396,1.125 true 2.698,0.292 2.448,0.292 2.448,0.292 2.031,1.125 true 0.042,0.042 0.354,0.198 0.313,0.156 10 false *a 0.365,0.208 0.979,0.406 0.615,0.198 10 false ILL+ 2.792,0.219 3.406,0.417 0.615,0.198 10 false ILL- 1.563,0.135 2.021,0.333 0.458,0.198 10 false I61

*a	Component without harness connected (Drive Mode Select Switch (Combination Switch Assembly))

Apply auxiliary battery voltage between the terminals of the switch, and check the illumination condition of the drive mode select switch (combination switch assembly).

Standard:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → I61-4 (ILL+) Auxiliary battery negative (-) → I61-1 (ILL-)	Illuminates

If the result is not as specified, replace the drive mode select switch (combination switch assembly).
