HYBRID / BATTERY CONTROL  RELAY  ON-VEHICLE INSPECTION

0.165,0.068 0.398,0.266 0.233,0.198 10 *1

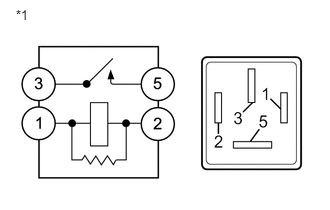

*1	IGCT Relay (IGCT)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3 - 5	Auxiliary battery voltage not applied between terminals 1 and 2	10 kΩ or higher
	Auxiliary battery voltage applied between terminals 1 and 2	Below 1 Ω

If the result is not as specified, replace the IGCT relay (IGCT).
