HYBRID / BATTERY CONTROL WATER PUMP WITH MOTOR REMOVAL

CAUTION / NOTICE / HINT

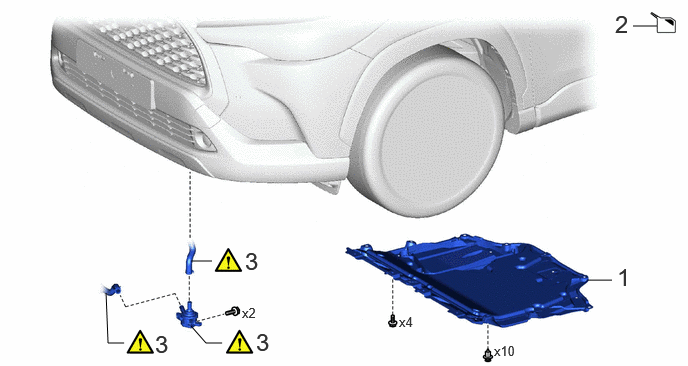

COMPONENTS(REMOVAL)

6.594,0.271 6.844,0.271 false 6.125,2.917 6.375,2.917 false 1.99,2.719 2.208,2.719 false 1.99,3.396 2.146,3.573 2.146,3.573 2.313,3.573 false 1.104,3.052 1.125,3.573 1.125,3.573 1.292,3.573 false 6.427,2.74 6.708,3.094 0.281,0.354 18 false 1 6.406,0.104 6.688,0.458 0.281,0.354 18 false 2 2.552,2.573 2.833,2.927 0.281,0.354 18 false 3 2.521,3.177 2.833,3.375 0.313,0.198 10 false x2 4.156,3.271 4.469,3.469 0.313,0.198 10 false x4 5.146,3.573 5.458,3.75 0.313,0.177 10 false x10 2.667,3.417 2.948,3.771 0.281,0.354 18 false 3 1.615,3.438 1.896,3.792 0.281,0.354 18 false 3

Procedure		Part Name Code
1	NO. 1 ENGINE UNDER COVER ASSEMBLY	51410	-	-	-
2	COOLANT (for Inverter)	-	-	(202307,999999,_51,_144957,_0604237,RM100000002BTQW_01_0038,)	-
3	INVERTER WATER PUMP WITH MOTOR ASSEMBLY	G9040	(202307,999999,_51,_144957,_0604237,RM100000002BTQW_01_0010,)	-	-

PROCEDURE

Hide Display 51410 1.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_144958,_0604262,RM100000002BTSY_01_0306,

Hide Display 2.DRAIN COOLANT (for Inverter)

Click hereGeneral>MAINTENANCE>COOLANT (for Inverter)>REPLACEMENT202307,999999,_V1,_104397,_0604252,RM100000002BTS5_01_0025,

Hide Display G9040 3.REMOVE INVERTER WATER PUMP WITH MOTOR ASSEMBLY

NOTICE:: ·

Put pieces of cloth into the pipes and disconnected hoses or cover the pipes and hoses with plastic bags to prevent foreign matter from entering the inverter water pump with motor assembly and inverter cooling system.

·

Do not apply excessive force to the hoses.

·

If the inverter water pump with motor assembly has been struck or dropped, replace it.

6.063,0.708 6.354,0.5 true 4.917,0.208 5.167,0.333 true 6.406,0.365 6.615,0.563 0.208,0.198 10 false *1 4.625,0.083 4.875,0.271 0.25,0.188 10 true *2 1.906,1.469 2.104,1.74 0.198,0.271 18 true i 1.781,0.771 1.979,1.042 0.198,0.271 18 true ii 3.625,0.031 3.865,0.302 0.24,0.271 18 false iii

Outlet No. 1 Hybrid Water Pump Hose

Inlet Hybrid Water Pump Hose

Disconnect the inverter water pump with motor assembly connector.

NOTICE:: To prevent coolant from entering the inverter water pump with motor assembly connector, perform thefollowing procedure.; Apply insulating tape to the connectors of the wire harness and inverter water pump with motor assembly.

ii.

Remove the 2 bolts.

iii.

Slide the 2 clips and disconnect the outlet No. 1 hybrid water pump hose and inlet hybrid water pump hose to remove the inverter water pump with motor assembly.
