MAINTENANCE  M20F-FXS, M20G-FXS SPARK PLUG  INSTALLATION


CAUTION / NOTICE / HINT

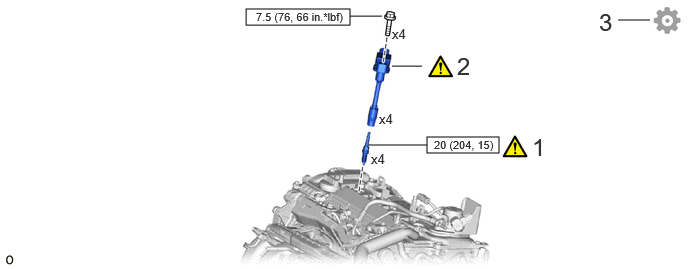

COMPONENTS (INSTALLATION)
A522761N01
4.448,1.427 5.198,1.594 0.75,0.167 2.563,0.094 3.646,0.26 1.083,0.167 4.083,0.688 4.396,0.688 false 3.844,1.51 4.448,1.51 false 3.646,0.167 3.979,0.167 false 6.438,0.208 6.771,0.208 false 4.521,1.438 5.24,1.604 0.719,0.167 8 false 20 (204, 15) 2.667,0.104 3.75,0.271 1.083,0.167 8 false 7.5 (76, 66 in.*lbf) 4.083,0.271 4.396,0.469 0.313,0.198 10 false x4 3.948,1.156 4.26,1.354 0.313,0.198 10 false x4 3.865,1.573 4.177,1.771 0.313,0.198 10 false x4 5.542,1.385 5.823,1.74 0.281,0.354 18 false 1 4.76,0.542 5.042,0.896 0.281,0.354 18 false 2 6.24,0.083 6.521,0.438 0.281,0.354 18 false 3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 SPARK PLUG 19100P (Click here) - -
2 IGNITION COIL ASSEMBLY 19500 (Click here) - -
3 PERFORM INITIALIZATION - - - (Click here)

V100146

N*m (kgf*cm, ft.*lbf): Specified torque - -

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 19100P 1.INSTALL SPARK PLUG

Z101186

NOTICE:

If a spark plug has been struck or dropped, replace it.


HINT:

Perform "Inspection After Repair" after replacing a spark plug.

Click here(Click here)



Torque:
20 N*m (204 kgf*cm, 15 ft.*lbf)

Hide 19500 2.INSTALL IGNITION COIL ASSEMBLY

Z101186

Click here(Click here)

Hide 3.PERFORM INITIALIZATION

a.

Perform "Inspection After Repair" after replacing an ignition coil assembly or spark plug.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION
