M20F-FXS, M20G-FXS SPARK PLUG
A
MAINTENANCE M20F-FXS, M20G-FXS SPARK PLUG REMOVAL
CAUTION / NOTICE / HINT

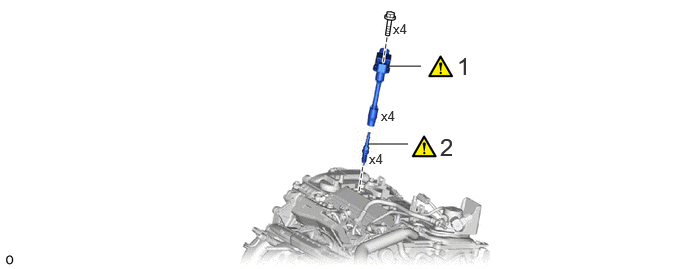

COMPONENTS (REMOVAL)
4.042,0.688 4.385,0.688
false
3.833,1.5 4.25,1.5
false
4.76,0.542 5.042,0.896
0.281,0.354
18
false
1
4.583,1.385 4.865,1.74
0.281,0.354
18
false
2
4.094,0.219 4.406,0.417
0.313,0.198
10
false
x4
3.969,1.125 4.281,1.323
0.313,0.198
10
false
x4
3.844,1.573 4.156,1.771
0.313,0.198
10
false
x4
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | IGNITION COIL ASSEMBLY | 19500 | ( 202307,999999,_V1,_104397,_0604229,RM100000002BTJ5_02_0002,)
|
- | - |
| 2 | SPARK PLUG | 19100P | (202307,999999,_V1,_104397,_0604229,RM100000002BTJ5_02_0003,)
|
- | - |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during spark plug removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
·
Replacement of ignition coil assembly ·
Replacement of spark plug |
Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202307,999999,_51,_144956,_0604911,RM100000002BWPD,)
|
- NOTICE:
-
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
PROCEDURE
19500
1.REMOVE IGNITION COIL ASSEMBLY
19100P

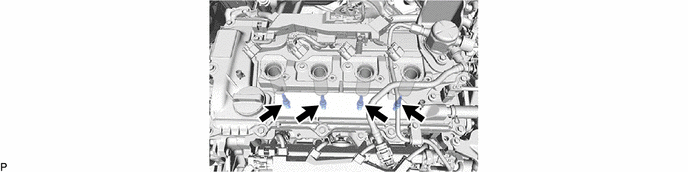

2.REMOVE SPARK PLUG
|
|
|
a.
