RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604225 KNOCK SENSOR A

M20F-FXS, M20G-FXS ENGINE CONTROL KNOCK SENSOR INSTALLATION

CAUTION / NOTICE / HINT

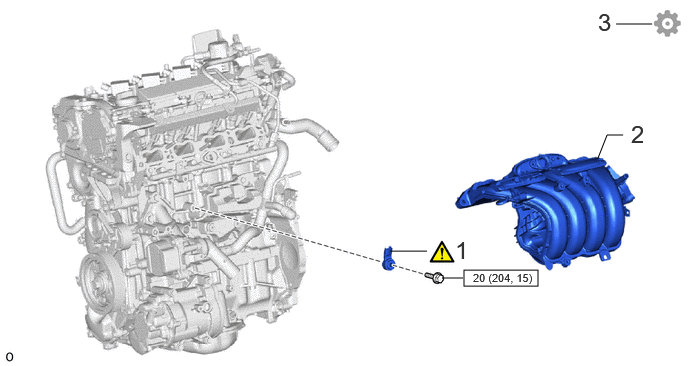

COMPONENTS (INSTALLATION)

4.833,2.813 5.604,2.979 0.771,0.167 6.417,0.25 6.792,0.25 false 6.229,1.646 6.323,1.406 6.323,1.406 6.49,1.406 false 4.604,2.896 4.823,2.896 false 4.063,2.615 4.448,2.615 false 4.74,2.458 5.021,2.813 0.281,0.354 18 false 1 6.573,1.25 6.854,1.604 0.281,0.354 18 false 2 6.229,0.083 6.51,0.438 0.281,0.354 18 false 3 4.927,2.823 5.906,2.979 0.979,0.156 8 false 20 (204, 15)

Procedure		Part Name Code
1	KNOCK CONTROL SENSOR	89615	(202307,999999,_51,_144956,_0604225,RM100000002BTIV_01_0038,)	-	-
2	INTAKE MANIFOLD	17111	-	-	-
3	PERFORM INITIALIZATION	-	-	-	(202307,999999,_51,_144956,_0604225,RM100000002BTIV_01_0040,)

N*m (kgf*cm, ft.*lbf): Specified torque

CAUTION / NOTICE / HINT

NOTICE:: This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.; Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION202307,999999,_V1,_107171,_0486700,RM100000002CS4V,

PROCEDURE

Hide Display 89615 1.INSTALL KNOCK CONTROL SENSOR

HINT:: Perform "Inspection After Repair" after replacing the knock control sensor.; Click here(202307,999999,_51,_144956,_0604911,RM100000002BWPD,)

3.021,0.073 3.333,0.229 0.313,0.156 10 false *a 2.385,1.323 2.698,1.479 0.313,0.156 10 false *b 2.677,0.302 2.99,0.458 0.313,0.156 10 false *c 3.052,0.292 3.365,0.448 0.313,0.156 10 false *d 0.417,0.135 0.573,0.417 0.156,0.281 18 true i 3.854,0.104 4.26,0.427 0.406,0.323 18 false ii

*a	Top of Vehicle	*b	Right of Vehicle
*c	15°	*d	5°

Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.

Torque:: 20 N*m (204 kgf*cm, 15 ft.*lbf)

NOTICE:: ·

If the knock control sensor has been struck or dropped, replace it.

·

Make sure that the knock control sensor is in the correct position.

ii.

Connect the knock control sensor connector.

Hide Display 17111 2.INSTALL INTAKE MANIFOLD

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (INTAKE / EXHAUST)>INTAKE MANIFOLD>INSTALLATION202307,999999,_51,_144997,_0604322,RM100000002BTVR,

Hide Display 3.PERFORM INITIALIZATION

Perform "Inspection After Repair" after replacing the knock control sensor.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION202307,999999,_51,_144956,_0604911,RM100000002BWPD,
