RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604223 IGNITION COIL AND SPARK PLUG A

M20F-FXS, M20G-FXS ENGINE CONTROL  IGNITION COIL AND SPARK PLUG  REMOVAL


CAUTION / NOTICE / HINT

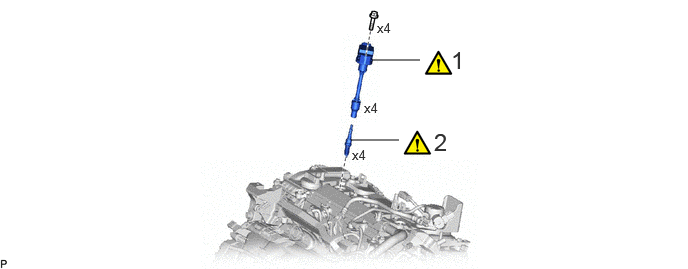

COMPONENTS (REMOVAL)
A482606N01
3.875,0.625 4.375,0.625 false 3.656,1.458 4.156,1.458 false 4.698,0.479 4.979,0.833 0.281,0.354 18 false 1 4.521,1.333 4.802,1.688 0.281,0.354 18 false 2 3.927,0.208 4.24,0.406 0.313,0.198 10 false x4 3.792,1.042 4.104,1.24 0.313,0.198 10 false x4 3.667,1.531 3.979,1.729 0.313,0.198 10 false x4

Procedure Part Name Code
Z101186

Z101188

Z101187

1 IGNITION COIL ASSEMBLY 19500 (Click here) - -
2 SPARK PLUG 19100P (Click here) - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ignition coil assembly or spark plug removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
·

Replacement of ignition coil assembly

·

Replacement of spark plug


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 19500 1.REMOVE IGNITION COIL ASSEMBLY

a.
A466818N01
0.438,0.094 1.813,0.448 1.375,0.354 18 false i, ii

i.

Disconnect the 4 ignition coil assembly connectors.


ii.

Using an 8 mm socket wrench, remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.

NOTICE:

If an ignition coil assembly has been struck or dropped, replace it.
