M20F-FXS, M20G-FXS ENGINE CONTROL  IGNITION COIL AND SPARK PLUG  INSTALLATION


CAUTION / NOTICE / HINT

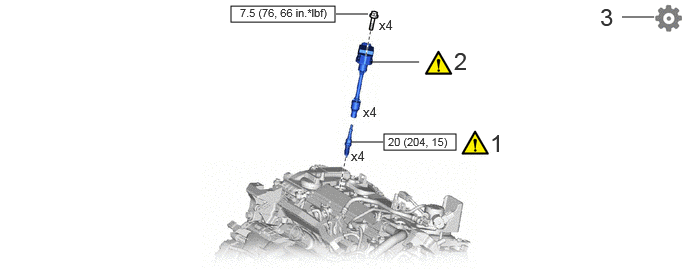

COMPONENTS (INSTALLATION)
A483100N02
4,1.396 4.75,1.563 0.75,0.167 2.406,0.063 3.49,0.229 1.083,0.167 3.865,0.646 4.365,0.646 false 3.656,1.479 3.99,1.479 false 3.5,0.146 3.833,0.146 false 6.479,0.177 6.813,0.177 false 4.042,1.406 4.76,1.573 0.719,0.167 8 false 20 (204, 15) 2.5,0.063 3.583,0.229 1.083,0.167 8 false 7.5 (76, 66 in.*lbf) 3.948,0.177 4.26,0.375 0.313,0.198 10 false x4 3.781,1.083 4.094,1.281 0.313,0.198 10 false x4 3.656,1.542 3.969,1.74 0.313,0.198 10 false x4 5.104,1.344 5.385,1.698 0.281,0.354 18 false 1 4.729,0.49 5.01,0.844 0.281,0.354 18 false 2 6.25,0.031 6.531,0.385 0.281,0.354 18 false 3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 SPARK PLUG 19100P (Click here) - -
2 IGNITION COIL ASSEMBLY 19500 (Click here) - -
3 PERFORM INITIALIZATION - - - (Click here)

V100146

N*m (kgf*cm, ft.*lbf): Specified torque - -

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 19500 2.INSTALL IGNITION COIL ASSEMBLY

Z101186

HINT:

Perform "Inspection After Repair" after replacing an ignition coil assembly.

Click here(Click here)



a.
A466818N01
0.438,0.094 1.813,0.448 1.375,0.354 18 false i, ii

i.

Using an 8 mm socket wrench, install the 4 ignition coil assemblies to the cylinder head cover sub-assembly with the 4 bolts.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)

NOTICE:

If an ignition coil assembly has been struck or dropped, replace it.



ii.

Connect the 4 ignition coil assembly connectors.



Hide 3.PERFORM INITIALIZATION

a.

Perform "Inspection After Repair" after replacing an ignition coil assembly or spark plug.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION
