RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604222 CAMSHAFT POSITION SENSOR A

M20F-FXS, M20G-FXS ENGINE CONTROL  CAMSHAFT POSITION SENSOR  REMOVAL


CAUTION / NOTICE / HINT

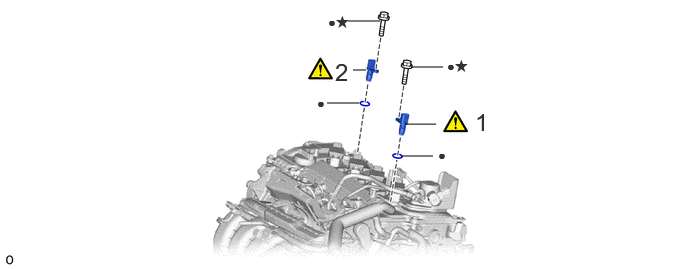

COMPONENTS (REMOVAL)
A522751N01
3.677,0.729 3.813,0.729 false 4.219,1.292 4.542,1.292 false 3.406,1.073 3.74,1.073 false 3.625,0.219 3.958,0.219 false 4.177,1.625 4.51,1.625 false 4.281,0.698 4.615,0.698 false 4.948,1.125 5.115,1.458 0.167,0.333 18 false 1 3.49,0.604 3.656,0.938 0.167,0.333 18 false 2 3.417,0.146 3.75,0.313 0.333,0.167 10 false ●★ 4.656,0.604 4.99,0.771 0.333,0.167 10 false ●★ 3.302,0.99 3.469,1.156 0.167,0.167 10 false ● 4.563,1.531 4.729,1.698 0.167,0.167 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

1 CAMSHAFT POSITION SENSOR (for Intake Side) 11102A (Click here) - -
2 CAMSHAFT POSITION SENSOR (for Exhaust Side) 11102A (Click here) - -

● Non-reusable part ★ Precoated part

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 11102A 1.REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)

a.
A522752N01
0.427,0.063 1.802,0.417 1.375,0.354 18 false i, ii 4.479,0.063 5.854,0.417 1.375,0.354 18 false iii

i.

Disconnect the camshaft position sensor connector.


ii.

Using an 8 mm socket wrench, remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.

NOTICE:

If the camshaft position sensor has been struck or dropped, replace it.



iii.

Perform this procedure only when reusing the

1. Remove the O-ring from the camshaft position sensor.

NOTICE:
·

Make sure to only remove the O-ring with bare hands.

·

When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.

·

If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.





Hide 11102A 2.REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)

a.
A522753N01
0.427,0.052 1.802,0.406 1.375,0.354 18 false i, ii 4.448,0.063 5.823,0.417 1.375,0.354 18 false iii

i.

Disconnect the camshaft position sensor connector.


ii.

Using an 8 mm socket wrench, remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.

NOTICE:

If the camshaft position sensor has been struck or dropped, replace it.



iii.

Perform this procedure only when reusing the

1. Remove the O-ring from the camshaft position sensor.

NOTICE:
·

Make sure to only remove the O-ring with bare hands.

·

When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.

·

If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.
