RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604222 CAMSHAFT POSITION SENSOR A

M20F-FXS, M20G-FXS ENGINE CONTROL  CAMSHAFT POSITION SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

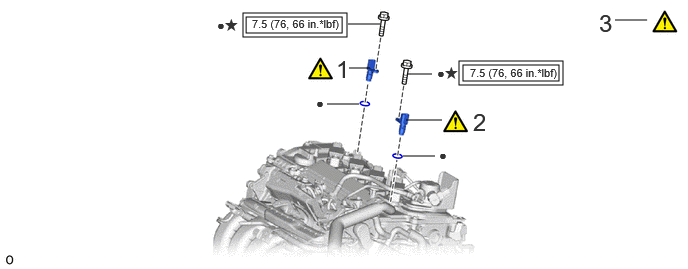

COMPONENTS (INSTALLATION)
A522750N03
2.563,0.177 3.563,0.344 1,0.167 4.781,0.635 5.865,0.885 1.083,0.25 4.823,0.677 5.823,0.844 1,0.167 2.531,0.135 3.615,0.385 1.083,0.25 3.635,0.708 3.854,0.708 false 4.229,1.25 4.604,1.25 false 3.406,1.083 3.74,1.083 false 4.198,1.625 4.531,1.625 false 4.24,0.771 4.5,0.771 false 3.625,0.25 3.958,0.25 false 6.406,0.208 6.74,0.208 false 3.5,0.573 3.781,0.927 0.281,0.354 18 false 1 4.927,1.125 5.208,1.479 0.281,0.354 18 false 2 2.625,0.177 3.635,0.365 1.01,0.188 8 false 7.5 (76, 66 in.*lbf) 4.896,0.688 5.906,0.875 1.01,0.188 8 false 7.5 (76, 66 in.*lbf) 2.26,0.177 2.573,0.375 0.313,0.198 10 false ●★ 4.552,0.677 4.865,0.875 0.313,0.198 10 false ●★ 3.292,0.99 3.469,1.198 0.177,0.208 10 false ● 4.573,1.531 4.75,1.74 0.177,0.208 10 false ● 6.24,0.094 6.521,0.448 0.281,0.354 18 false 3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 CAMSHAFT POSITION SENSOR (for Exhaust Side) 11102A (Click here) - -
2 CAMSHAFT POSITION SENSOR (for Intake Side) 11102A (Click here) - -
3 ENGINE OIL LEAK - (Click here) - -

V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) ● Non-reusable part
★ Precoated part - -

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 11102A 1.INSTALL CAMSHAFT POSITION SENSOR (for Exhaust Side)

a.
A522754C01
3.552,0.896 3.156,0.896 false 4.875,1.885 4.875,1.667 false 4.875,3.219 4.875,3 false 5.948,1.729 5.948,1.51 false 5.969,3.094 5.969,2.875 false 4.896,2.25 5.052,2.094 5.052,2.094 5.24,2.094 true 6.719,2.875 6.469,2.875 false 6.531,1.823 6.344,1.823 6.344,1.823 6.219,1.698 false 6.594,0.802 6.427,0.802 6.427,0.802 6.229,0.927 false 5.667,2.344 5.948,2.344 false 4.865,0.948 5.063,0.646 5.063,0.646 5.229,0.646 true 4.802,1.896 5.115,2.052 0.313,0.156 10 false *1 3.583,0.813 3.896,0.969 0.313,0.156 10 false *b 4.427,0.76 4.74,0.917 0.313,0.156 10 false *c 4.427,2.125 4.74,2.281 0.313,0.156 10 false *d 5.302,0.573 5.615,0.729 0.313,0.156 10 false *a 4.833,3.208 5.146,3.365 0.313,0.156 10 false *1 5.896,1.771 6.208,1.927 0.313,0.156 10 false *1 5.927,3.135 6.24,3.292 0.313,0.156 10 false *1 6.635,0.719 6.948,0.875 0.313,0.156 10 false *a 6.573,1.74 6.885,1.896 0.313,0.156 10 false *a 5.51,2.25 5.823,2.406 0.313,0.156 10 false *a 6.74,2.802 7.052,2.958 0.313,0.156 10 false *a 5.271,2.021 5.583,2.177 0.313,0.156 10 false *a 5.042,1.219 5.26,1.427 0.219,0.208 10 false A 5.031,2.531 5.25,2.74 0.219,0.208 10 false B 4.604,1.219 4.74,1.385 0.135,0.167 10 true A 4.583,2.563 4.719,2.729 0.135,0.167 10 true B 6.083,0.615 6.677,0.906 0.594,0.292 10 false A - A 6.063,2.042 6.656,2.333 0.594,0.292 10 false B - B 1.323,0.167 1.875,0.521 0.552,0.354 18 false i, ii 0.5,1.958 1.052,2.313 0.552,0.354 18 false iii, iv
*1 O-ring - -
*a Seam *b Camshaft Position Sensor Tip
*c OK *d NG


i.

Perform this procedure only when reusing the camshaft position sensor.

1. Clean the O-ring groove of the camshaft position sensor.

NOTICE:

Make sure the O-ring groove is free of foreign matter.


2. Install a new O-ring to the camshaft position sensor.

NOTICE:

Set the O-ring on the tip of the camshaft position sensor and roll it into the O-ring groove with bare hands to install it.


3. Check if the O-ring is twisted.

HINT:

Check the entire circumference of the seam of the O-ring for twisting.



ii.

Apply a light coat of engine oil to the O-ring of the camshaft position sensor.

NOTICE:

If reusing the camshaft position sensor, be sure to inspect the O-ring.



iii.

Using an 8 mm socket wrench, install the camshaft position sensor to the cylinder head cover sub-assembly with a new bolt.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)

NOTICE:
·

If the camshaft position sensor has been struck or dropped, replace it.

·

Make sure that the O-ring is not cracked or moved out of place when installing the camshaft position sensor.




iv.

Connect the camshaft position sensor connector.



Hide 11102A 2.INSTALL CAMSHAFT POSITION SENSOR (for Intake Side)

a.
A466811C03
3.333,1.031 2.938,1.031 false 4.667,1.969 4.667,1.75 false 4.667,3.313 4.667,3.094 false 5.792,1.875 5.792,1.656 false 5.813,3.229 5.813,3.01 false 4.667,2.563 4.865,2.26 4.865,2.26 5.031,2.26 true 6.5,2.99 6.25,2.99 false 6.333,1.885 6.146,1.885 6.146,1.885 6.021,1.76 false 6.385,0.927 6.219,0.927 6.219,0.927 6.021,1.052 false 5.448,2.49 5.729,2.49 false 4.656,1.198 4.854,0.896 4.854,0.896 5.021,0.896 true 4.625,1.979 4.938,2.135 0.313,0.156 10 false *1 3.354,0.948 3.667,1.104 0.313,0.156 10 false *b 4.167,0.885 4.479,1.042 0.313,0.156 10 false *c 4.156,2.292 4.469,2.448 0.313,0.156 10 false *d 5.063,0.802 5.375,0.958 0.313,0.156 10 false *a 4.615,3.313 4.927,3.469 0.313,0.156 10 false *1 5.729,1.885 6.042,2.042 0.313,0.156 10 false *1 5.76,3.24 6.073,3.396 0.313,0.156 10 false *1 6.417,0.844 6.729,1 0.313,0.156 10 false *a 6.375,1.802 6.688,1.958 0.313,0.156 10 false *a 5.281,2.406 5.594,2.563 0.313,0.156 10 false *a 6.531,2.906 6.844,3.063 0.313,0.156 10 false *a 5.052,2.188 5.365,2.344 0.313,0.156 10 false *a 4.792,1.344 5.01,1.552 0.219,0.208 10 false A 4.792,2.677 5.01,2.885 0.219,0.208 10 false B 4.427,1.344 4.563,1.51 0.135,0.167 10 true A 4.427,2.688 4.563,2.854 0.135,0.167 10 true B 5.844,0.76 6.438,1.052 0.594,0.292 10 false A - A 5.854,2.135 6.448,2.427 0.594,0.292 10 false B - B 1.021,0.146 1.573,0.5 0.552,0.354 18 false i, ii 0.385,2.01 0.938,2.365 0.552,0.354 18 false iii, iv
*1 O-ring - -
*a Seam *b Camshaft Position Sensor Tip
*c OK *d NG


i.

Perform this procedure only when reusing the camshaft position sensor.

1. Clean the O-ring groove of the camshaft position sensor.

NOTICE:

Make sure the O-ring groove is free of foreign matter.


2. Install a new O-ring to the camshaft position sensor.

NOTICE:

Set the O-ring on the tip of the camshaft position sensor and roll it into the O-ring groove with bare hands to install it.


3. Check if the O-ring is twisted.

HINT:

Check the entire circumference of the seam of the O-ring for twisting.



ii.

Apply a light coat of engine oil to the O-ring of the camshaft position sensor.

NOTICE:

If reusing the camshaft position sensor, be sure to inspect the O-ring.



iii.

Using an 8 mm socket wrench, install the camshaft position sensor to the cylinder head cover sub-assembly with a new bolt.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)

NOTICE:
·

If the camshaft position sensor has been struck or dropped, replace it.

·

Make sure that the O-ring is not cracked or moved out of place when installing the camshaft position sensor.




iv.

Connect the camshaft position sensor connector.



Hide 3.INSPECT FOR ENGINE OIL LEAK

Z101186

Click here(Click here)
