M20F-FXS, M20G-FXS ENGINE CONTROL  MASS AIR FLOW METER  INSTALLATION


CAUTION / NOTICE / HINT

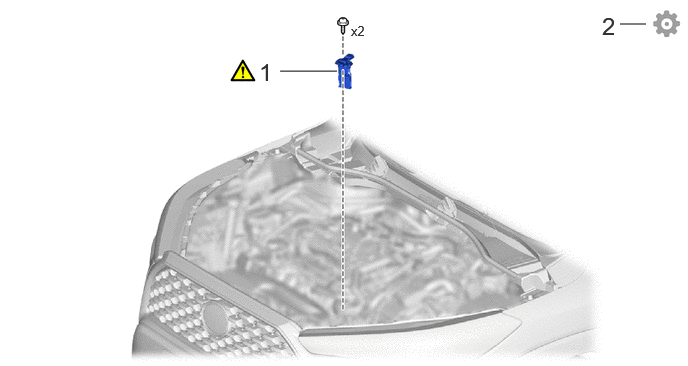

COMPONENTS (INSTALLATION)
A523068N01
6.458,0.25 6.729,0.25 false 2.917,0.74 3.51,0.74 false 2.698,0.604 2.979,0.958 0.281,0.354 18 false 1 6.271,0.125 6.552,0.479 0.281,0.354 18 false 2 3.656,0.24 3.969,0.438 0.313,0.198 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 MASS AIR FLOW METER SUB-ASSEMBLY 22204 (Click here) - -
2 PERFORM INITIALIZATION - - - (Click here)

PROCEDURE

Hide 22204 1.INSTALL MASS AIR FLOW METER SUB-ASSEMBLY

Z101186

HINT:

Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

Click here(Click here)



a.
A521216N01
0.385,0.063 0.667,0.417 0.281,0.354 18 false i 3.708,0.073 3.99,0.427 0.281,0.354 18 false ii

i.

Install the mass air flow meter sub-assembly to the air cleaner cap sub-assembly with the 2 screws.

NOTICE:
·

If the mass air flow meter sub-assembly has been struck or dropped, replace it.

·

If reusing the mass air flow meter sub-assembly, be sure to inspect the gasket.

·

Make sure that the gasket is not cracked or moved out of place when installing the mass air flow meter sub-assembly.




ii.

Connect the mass air flow meter sub-assembly connector.



Hide 2.PERFORM INITIALIZATION

a.

Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION
