M20F-FXS, M20G-FXS ENGINE CONTROL  THROTTLE BODY  INSPECTION

0.594,1.75 0.969,1.219 true 1.385,1.75 1.385,1.24 true 0.073,0.083 0.385,0.375 0.313,0.292 10 false *a 0.49,1.76 0.802,2.052 0.313,0.292 10 false M+ 1.313,1.76 1.625,2.052 0.313,0.292 10 false M-

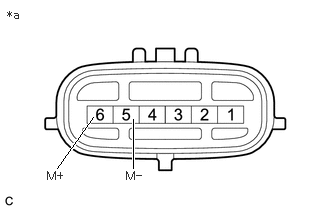

*a	Component without harness connected (Throttle Body with Motor Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
5 (M-) - 6 (M+)	20°C (68°F)	0.3 to 100 Ω

If the result is not as specified, replace the throttle body with motor assembly.
