RM38T0EC _52 Drivetrain _144756 PB10 HYBRID TRANSMISSION / TRANSAXLE _0603126 SHIFT LEVER POSITION SENSOR A

PB10 HYBRID TRANSMISSION / TRANSAXLE  SHIFT LEVER POSITION SENSOR  REMOVAL


CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)
C506967N01
6.427,0.24 6.76,0.24 false 4.979,1.313 5.313,1.313 false 6.25,0.094 6.531,0.448 0.281,0.354 18 false 1 5.354,1.167 5.781,1.5 0.427,0.333 18 false 2 3.146,1.938 3.458,2.135 0.313,0.198 10 false x4 3.906,2.219 4.219,2.417 0.313,0.198 10 false x10

Procedure Part Name Code
Z101186

Z101188

Z101187

1 SECURE VEHICLE - (Click here) - -

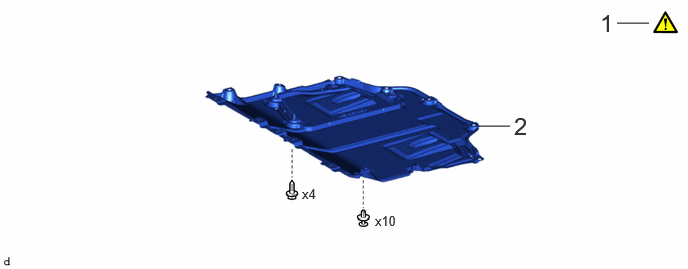

2 NO. 1 ENGINE UNDER COVER ASSEMBLY 51410 - - -

C506969N01
1.521,1.604 1.854,1.604 false 3.094,4.708 3.094,5.042 false 2.281,3.75 2.281,4.083 false 0.615,1.531 0.948,1.531 false 2.854,2.406 3.021,2.406 3.021,2.406 3.271,2.938 false 2.677,3.542 2.677,3.875 false 3.01,3.469 3.01,3.802 false 2.667,2.26 2.948,2.615 0.281,0.354 18 false 5 2.219,4.104 2.5,4.458 0.281,0.354 18 false 4 2.177,1.49 2.458,1.844 0.281,0.354 18 false 3 3.177,4.635 3.49,4.833 0.313,0.198 10 false x2 2.99,5.031 3.396,5.292 0.406,0.26 10 false ● ★ 0.49,1.438 0.646,1.635 0.156,0.198 10 false ● 2.625,3.875 2.938,4.073 0.313,0.198 10 false *1 2.958,3.813 3.271,4.01 0.313,0.198 10 false *2

Procedure Part Name Code
Z101186

Z101188

Z101187

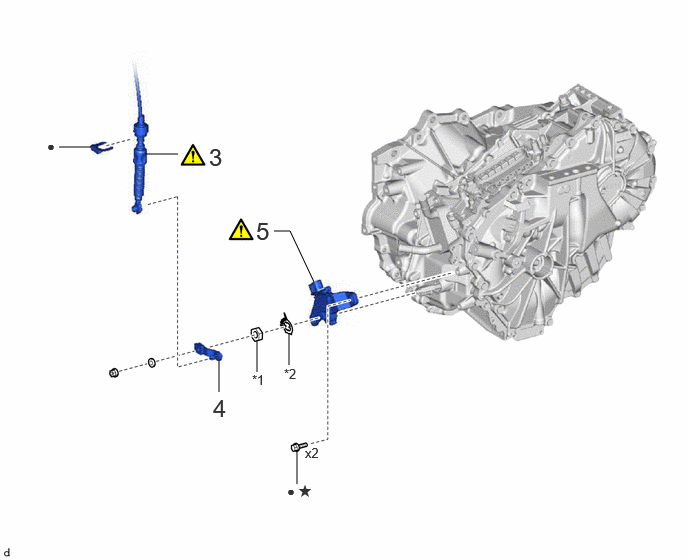

3 TRANSMISSION CONTROL CABLE ASSEMBLY 33820B (Click here) - -
4 TRANSMISSION CONTROL SHAFT LEVER 35572D - - -
5 SHIFT LEVER POSITION SENSOR 89451A (Click here) - -

*1 LOCK NUT *2 LOCK PLATE
● Non-reusable part ★ Precoated part

PROCEDURE

Hide 1.SECURE VEHICLE

a.
C432457N01
0.417,0.083 0.698,0.438 0.281,0.354 18 false i

i.

Fully apply the parking brake and chock a wheel.

CAUTION:
·

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.





Hide 33820B 3.DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

a.
C438865E01
1.885,0 2.167,0.354 0.281,0.354 18 false i

i.

Move the shift lever to N.



b.
C506959C01
4.302,0.906 4.542,0.708 false 0.396,0.042 0.938,0.375 0.542,0.333 18 false i, ii 4.573,0.604 4.885,0.802 0.313,0.198 10 false *a 6.125,0.313 6.438,0.51 0.313,0.198 10 false *b

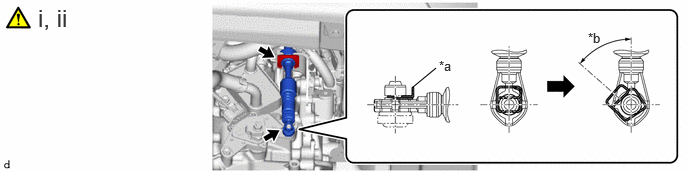

*a Clip *b 45° to 60°


i.

While disengaging the clip as shown in the illustration, disconnect the transmission control cable assembly from the transmission control shaft lever together with the clip.


ii.

Remove the clip and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.

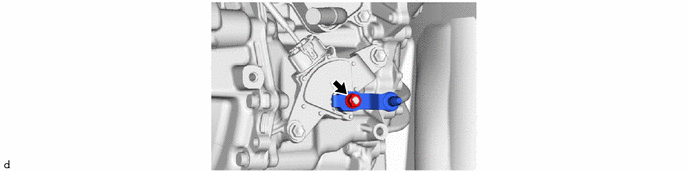

Hide 35572D 4.REMOVE TRANSMISSION CONTROL SHAFT LEVER

a.
C506961


Hide 89451A 5.REMOVE SHIFT LEVER POSITION SENSOR

a.
C506962N01
0.344,0.063 0.625,0.417 0.281,0.354 18 false i 3.948,0.063 4.229,0.417 0.281,0.354 18 false ii 0.281,2.063 0.563,2.417 0.281,0.354 18 false iii 3.917,2.063 4.198,2.417 0.281,0.354 18 false iv

i.

Disconnect the shift lever position sensor connector.


ii.

Using a screwdriver with its tip wrapped with protective tape, pry out the tabs of the lock plate.


iii.

Remove the lock nut and lock plate from the shift lever position sensor.


iv.

Remove the 2 bolts and shift lever position sensor from the hybrid vehicle transaxle assembly.
