PB10 HYBRID TRANSMISSION / TRANSAXLE  SHIFT LEVER POSITION SENSOR  INSPECTION

1.854,0.958 2.333,0.313 true 1.573,0.938 1.917,0.24 true 1.333,0.948 1.104,0.292 true 1.177,0.958 0.75,0.448 true 1.25,1.313 0.729,1.99 true 1.406,1.323 1.083,1.99 true 1.708,1.313 1.896,2 true 2,1.323 2.344,1.979 true 0.063,0.063 0.375,0.302 0.313,0.24 10 false *a 2.396,1.917 2.75,2.125 0.354,0.208 10 false DB2 2.406,0.24 2.76,0.448 0.354,0.208 10 false DB1 1.979,0.146 2.177,0.375 0.198,0.229 10 false N 0.896,0.208 1.208,0.406 0.313,0.198 10 false PR 0.448,0.365 0.813,0.594 0.365,0.229 10 false PNB 0.604,1.927 0.802,2.156 0.198,0.229 10 false R 0.958,1.927 1.156,2.156 0.198,0.229 10 false P 1.948,1.938 2.26,2.135 0.313,0.198 10 false +B

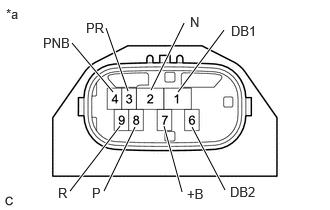

*a	Component without harness connected (Shift Lever Position Sensor)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
7 (+B) - 3 (PR)	Shift lever in P	Below 1 Ω
7 (+B) - 4 (PNB)		Below 1 Ω
7 (+B) - 8 (P)		Below 1 Ω
7 (+B) - 1 (DB1), 2 (N), 6 (DB2) or 9 (R)		10 kΩ or higher
7 (+B) - 3 (PR)	Shift lever in R	Below 1 Ω
7 (+B) - 9 (R)		Below 1 Ω
7 (+B) - 1 (DB1), 2 (N), 4 (PNB), 6 (DB2) or 8 (P)		10 kΩ or higher
7 (+B) - 2 (N)	Shift lever in N	Below 1 Ω
7 (+B) - 4 (PNB)		Below 1 Ω
7 (+B) - 1 (DB1), 3 (PR), 6 (DB2), 8 (P) or 9 (R)		10 kΩ or higher
7 (+B) - 1 (DB1)	Shift lever in D	Below 1 Ω
7 (+B) - 6 (DB2)		Below 1 Ω
7 (+B) - 2 (N), 3 (PR), 4 (PNB), 8 (P) or 9 (R)		10 kΩ or higher

HINT:

The shift lever position sensor connector (shift lever position sensor side) does not have a terminal 5.
