PB10 HYBRID TRANSMISSION / TRANSAXLE
_0603124
SHIFT LEVER KNOB
A
PB10 HYBRID TRANSMISSION / TRANSAXLE SHIFT LEVER KNOB INSTALLATION
CAUTION / NOTICE / HINT

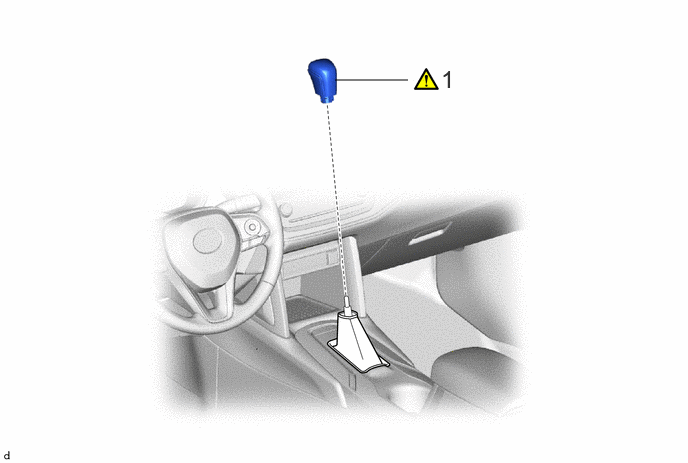

COMPONENTS (INSTALLATION)
3.49,0.833 4.25,0.833
false
4.594,0.677 4.875,1.031
0.281,0.354
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | SHIFT LEVER KNOB SUB-ASSEMBLY | 33504F | ( 202307,999999,_52,_144756,_0603124,RM100000002BO8C_01_0005,)
|
- | - |
PROCEDURE
33504F

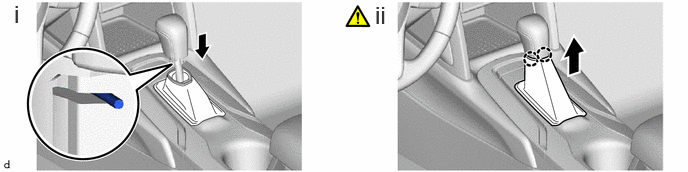

1.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
a.
0.146,0 0.427,0.354
0.281,0.354
18
false
i
3.906,0.01 4.188,0.365
0.281,0.354
18
false
ii
i.
Install the shift lever knob sub-assembly to the transmission floor shift assembly.
ii.
Engage the 2 claws to connect the shifting hole cover sub-assembly.
- NOTICE:
-
Make sure that the shifting hole cover sub-assembly does not twist after installing the shift lever knob sub-assembly.
