Drivetrain
_144756
PB10 HYBRID TRANSMISSION / TRANSAXLE
_0603124
SHIFT LEVER KNOB
A
PB10 HYBRID TRANSMISSION / TRANSAXLE SHIFT LEVER KNOB REMOVAL
CAUTION / NOTICE / HINT
COMPONENTS (REMOVAL)
3.49,0.833 4.25,0.833
false
4.594,0.677 4.875,1.031
0.281,0.354
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | SHIFT LEVER KNOB SUB-ASSEMBLY | 33504F | ( 202307,999999,_52,_144756,_0603124,RM100000002BO8B_01_0005,)
|
- | - |
PROCEDURE
33504F
1.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
a.
0.083,0 0.365,0.354
0.281,0.354
18
false
i
3.896,0 4.177,0.354
0.281,0.354
18
false
ii

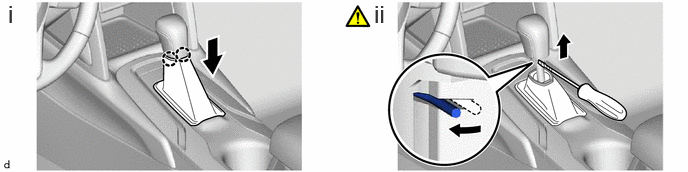

i.
Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.
ii.
Using a screwdriver with its tip wrapped with protective tape, expand the LH side clip and pull out the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.
- NOTICE:
-
Be careful not to damage the shift lever knob sub-assembly.
