RM38T0EC _52 Drivetrain _144756 PB10 HYBRID TRANSMISSION / TRANSAXLE _0603123 SHIFT LEVER A

PB10 HYBRID TRANSMISSION / TRANSAXLE SHIFT LEVER REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

3.104,0.594 3.438,0.594 false 4.385,0.823 4.719,0.823 false 6.448,0.208 6.781,0.208 false 2.885,0.448 3.167,0.802 0.281,0.354 18 false 3 5.094,0.698 5.375,1.052 0.281,0.354 18 false 2 6.271,0.073 6.552,0.427 0.281,0.354 18 false 1

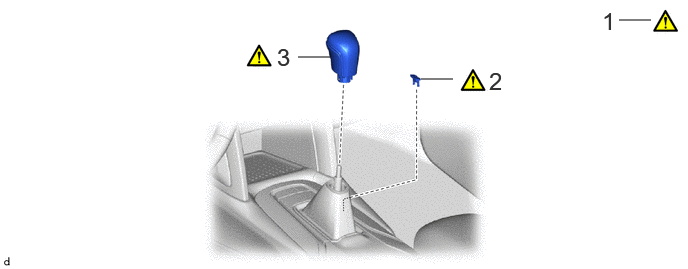

Procedure		Part Name Code
1	SECURE VEHICLE	-	(202307,999999,_52,_144756,_0603123,RM100000002BO86_01_0175,)	-	-
2	SHIFT LOCK RELEASE BUTTON COVER	33554C	(202307,999999,_52,_144756,_0603123,RM100000002BO86_01_0163,)	-	-
3	SHIFT LEVER KNOB SUB-ASSEMBLY	33504F	(202307,999999,_52,_144756,_0603123,RM100000002BO86_01_0179,)	-	-

1.583,2.5 5.583,4.583 4,2.083 1.906,1.042 2.24,1.042 false 2.469,3.208 2.469,3.542 false 3.375,3.729 3.375,4.063 false 2.406,3.563 2.688,3.917 0.281,0.354 18 false 6 3.313,4.073 3.594,4.427 0.281,0.354 18 false 5 1.729,0.906 2.01,1.26 0.281,0.354 18 false 4 1.667,2.594 1.917,2.833 0.25,0.24 12 false *A

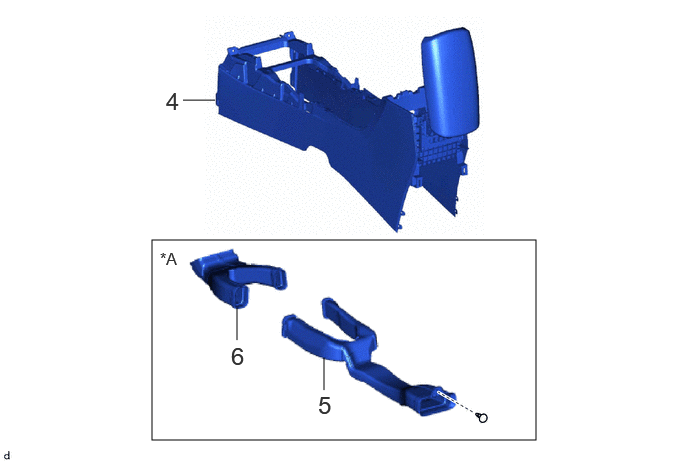

Procedure		Part Name Code
4	CONSOLE BOX ASSEMBLY	58810J	-	-	-
5	NO. 2 CONSOLE BOX DUCT	58862B	-	-	-
6	NO. 1 CONSOLE BOX DUCT	58861B	-	-	-

w/ Rear Air Duct

5.167,0.885 5.5,0.885 false 3.469,2.625 3.802,2.625 false 5.792,0.771 6.073,1.125 0.281,0.354 18 false 7 3.865,2.5 4.146,2.854 0.281,0.354 18 false 8 1.875,2.719 2.188,2.917 0.313,0.198 10 false x4

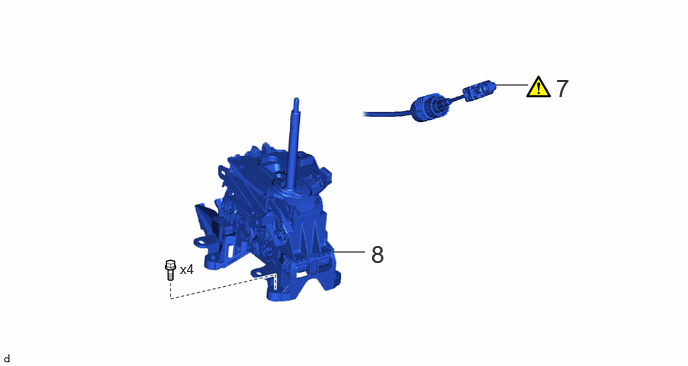

Procedure		Part Name Code
7	TRANSMISSION CONTROL CABLE ASSEMBLY	33820B	(202307,999999,_52,_144756,_0603123,RM100000002BO86_01_0177,)	-	-
8	TRANSMISSION FLOOR SHIFT ASSEMBLY	-	-	-	-

PROCEDURE

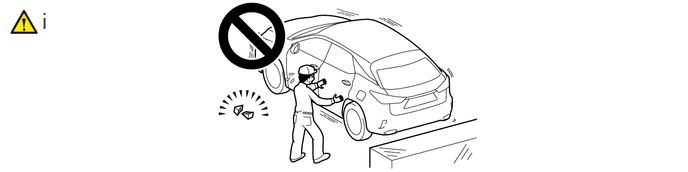

Hide Display 1.SECURE VEHICLE

0.417,0.083 0.698,0.438 0.281,0.354 18 false i

Fully apply the parking brake and chock a wheel.

CAUTION:: ·

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

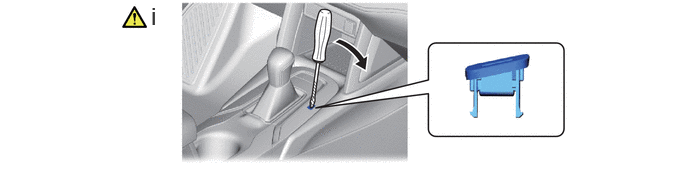

Hide Display 33554C 2.REMOVE SHIFT LOCK RELEASE BUTTON COVER

1.573,0.021 1.854,0.375 0.281,0.354 18 false i

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the position indicator housing assembly.

NOTICE:: Be careful not to damage the shift lock release button cover and position indicator housing assembly.

Hide Display 33504F 3.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Click here(

202307,999999,_52,_144756,_0603124,RM100000002BO8B_01_0005,)

Hide Display 58810J 4.REMOVE CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH,

Hide Display 58862B 5.REMOVE NO. 2 CONSOLE BOX DUCT (w/ Rear Air Duct)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT>REMOVAL202307,999999,_58,_104612,_0500007,RM100000002BK0Y_02_0214,

Hide Display 58861B 6.REMOVE NO. 1 CONSOLE BOX DUCT (w/ Rear Air Duct)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT>REMOVAL202307,999999,_58,_104612,_0500007,RM100000002BK0Y_02_0166,

Hide Display 33820B 7.DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

1.885,0 2.167,0.354 0.281,0.354 18 false i

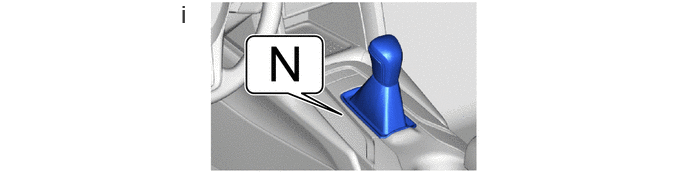

Move the shift lever to N.

5.365,2.802 5.563,2.938 5.563,2.938 5.76,2.802 false 5.115,2.344 5.281,2.229 false 6,2.354 6.167,2.24 false 2.365,4.042 2.604,3.844 true 4.396,0.25 4.615,0.354 false 5.323,2.135 5.635,2.323 0.313,0.188 10 false *2 5.51,2.958 5.823,3.115 0.313,0.156 10 false *3 6.24,2.875 6.469,3.063 0.229,0.188 10 false *b 0.385,0.063 0.625,0.396 0.24,0.333 18 false i 2.615,3.74 2.792,3.938 0.177,0.198 10 true *2 3.927,2.052 4.167,2.385 0.24,0.333 18 false iii 0.333,2.073 0.573,2.406 0.24,0.333 18 false ii 6.208,2.146 6.521,2.333 0.313,0.188 10 false *2 4.229,0.135 4.542,0.323 0.313,0.188 10 false *1 4.906,1.417 5.219,1.573 0.313,0.156 10 false *a

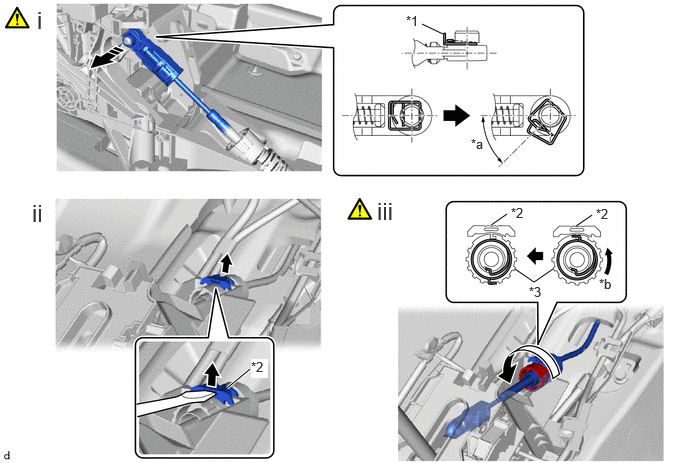

*1	Clip	*2	Stopper
*3	Lock Nut	-	-
*a	45° to 60°	*b	Rotate approximately 180°

While disengaging the clip as shown in the illustration, disconnect the transmission control cable assembly from the transmission floor shift assembly together with the clip.

ii.

Using a screwdriver, pull out the stopper of the transmission control cable assembly.

NOTICE:: Do not remove the stopper. If it is removed, reinstall it to its original position.

iii.

Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

NOTICE:: ·

Do not rotate the lock nut excessively as the internal spring may come off and the transmission control cable assembly will not be reusable.

·

Do not forcibly pull the transmission control select cable assembly into the cabin.

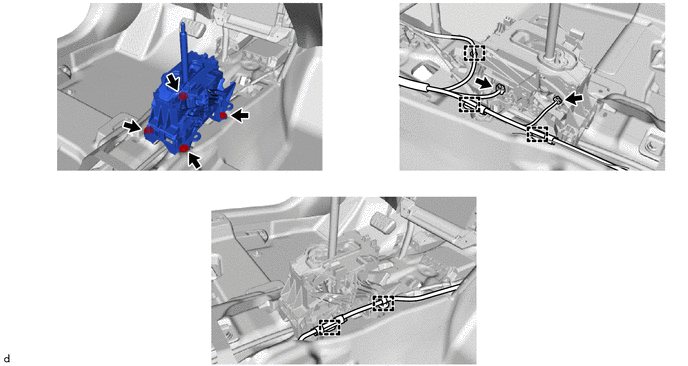

Hide Display 8.REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
