PB10 HYBRID TRANSMISSION / TRANSAXLE OIL COOLER REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

6.427,0.24 6.76,0.24 false 4.979,1.313 5.313,1.313 false 6.25,0.094 6.531,0.448 0.281,0.354 18 false 2 5.354,1.167 5.781,1.5 0.427,0.333 18 false 1 3.146,1.938 3.458,2.135 0.313,0.198 10 false x4 3.906,2.219 4.219,2.417 0.313,0.198 10 false x10

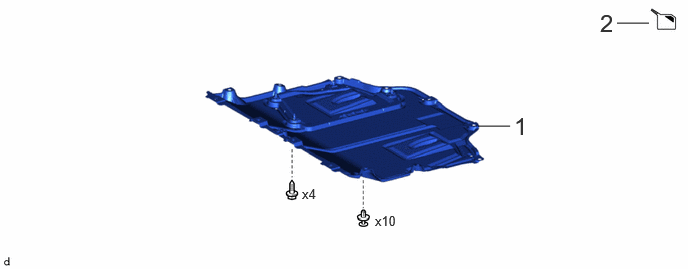

Procedure		Part Name Code
1	NO. 1 ENGINE UNDER COVER ASSEMBLY	51410	-	-	-
2	DRAIN COOLANT (for Inverter)	-	-	(202307,999999,_52,_144756,_0603120,RM100000002BO80_01_0021,)	-

2.104,2.969 2.438,2.969 false 2.021,1.865 2.354,1.865 false 2.021,1.094 2.354,1.094 false 2.49,2.813 2.771,3.167 0.281,0.354 18 false 5 2.396,1.74 2.677,2.094 0.281,0.354 18 false 4 2.406,0.969 2.688,1.323 0.281,0.354 18 false 3 1.875,2.26 2.188,2.458 0.313,0.198 10 false x3

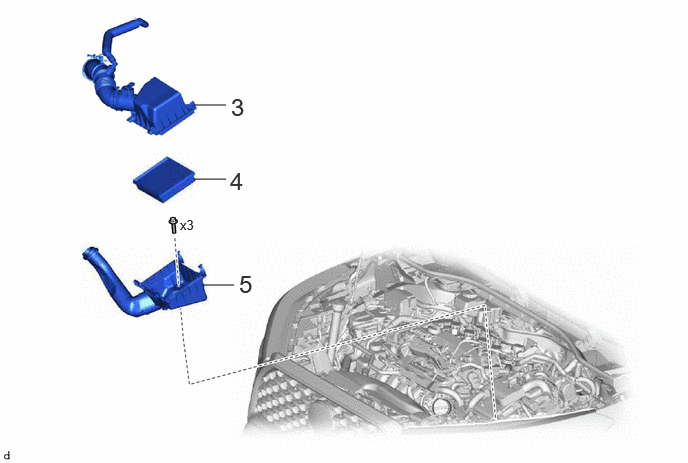

Procedure		Part Name Code
3	AIR CLEANER CAP WITH AIR CLEANER HOSE	-	-	-	-
4	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	17801	-	-	-
5	AIR CLEANER CASE SUB-ASSEMBLY	17701	-	-	-

1.521,2.927 1.854,2.927 false 2.604,3.313 2.604,3.646 false 1.719,2.031 2.052,2.031 false 0.99,3.281 1.323,3.281 false 3.125,2.823 3.375,2.823 3.375,2.823 3.375,3.406 false 3.208,3.083 3.375,3.083 false 2.667,3.656 2.948,4.01 0.281,0.354 18 false 8 1.5,1.896 1.781,2.25 0.281,0.354 18 false 7 0.792,3.156 1.073,3.51 0.281,0.354 18 false 6 3.281,3.417 3.896,3.615 0.615,0.198 10 false ● *1 2.021,2.917 2.333,3.115 0.313,0.198 10 false x3 1.229,2.833 1.552,3.104 0.323,0.271 10 false ● ★

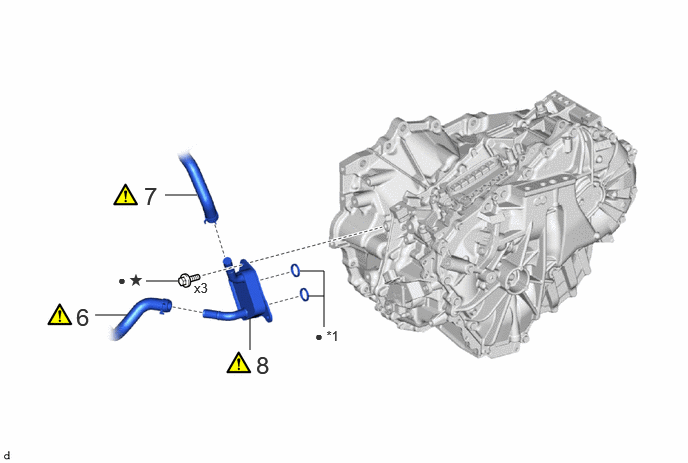

Procedure		Part Name Code
6	OUTLET NO. 2 INVERTER COOLING HOSE	G922D	(202307,999999,_52,_144756,_0603120,RM100000002BO80_01_0019,)	-	-
7	OUTLET NO. 1 INVERTER COOLING HOSE	G922C	(202307,999999,_52,_144756,_0603120,RM100000002BO80_01_0020,)	-	-
8	MOTOR COOLING COOLER	G125AA	(202307,999999,_52,_144756,_0603120,RM100000002BO80_01_0008,)	-	-

*1	TRANSAXLE OIL SEAL RING	-	-
●	Non-reusable part	★	Precoated part

PROCEDURE

Hide Display 51410 1.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_144958,_0604262,RM100000002BTSY_01_0306,

Hide Display 2.DRAIN COOLANT (for Inverter)

Click hereGeneral>MAINTENANCE>COOLANT (for Inverter)>REPLACEMENT202307,999999,_V1,_104397,_0604252,RM100000002BTS5_01_0025,

Hide Display 3.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL202307,999999,_51,_144956,_0604219,RM100000002BTIE_01_0025,

Hide Display 17801 4.REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AIR CLEANER FILTER ELEMENT>REMOVAL202307,999999,_V1,_104397,_0604325,RM100000002BTVX_04_0002,

Hide Display 17701 5.REMOVE AIR CLEANER CASE SUB-ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER>REMOVAL202307,999999,_51,_144957,_0604245,RM100000002BTRE_02_0040,

Hide Display G922D 6.DISCONNECT OUTLET NO. 2 INVERTER COOLING HOSE

0.396,0.052 0.677,0.406 0.281,0.354 18 false i

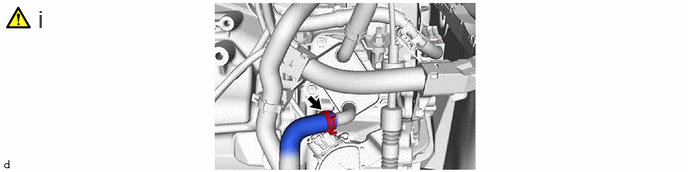

Slide the clip and disconnect the outlet No. 2 inverter cooling hose from the motor cooling cooler.

NOTICE:: ·

Use a container to catch any coolant which flows out of the outlet No. 2 inverter cooling hose and motor cooling cooler.

·

Put pieces of cloth into the pipe and disconnected hose or cover the pipe and hose with plastic bags to prevent entry of foreign matter.

Hide Display G922C 7.DISCONNECT OUTLET NO. 1 INVERTER COOLING HOSE

0.396,0.052 0.677,0.406 0.281,0.354 18 false i

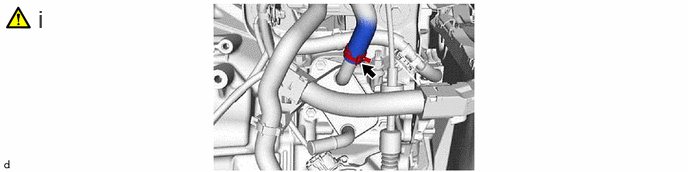

Slide the clip and disconnect the outlet No. 1 inverter cooling hose from the motor cooling cooler.

NOTICE:: ·

Use a container to catch any coolant which flows out of the outlet No. 1 inverter cooling hose and motor cooling cooler.

·

Put pieces of cloth into the pipe and disconnected hose or cover the pipe and hose with plastic bags to prevent entry of foreign matter.

Hide Display G125AA 8.REMOVE MOTOR COOLING COOLER

2.115,0.052 2.396,0.406 0.281,0.354 18 false i 0.406,0.063 0.688,0.417 0.281,0.354 18 false i 4,0.073 4.552,0.427 0.552,0.354 18 false ii

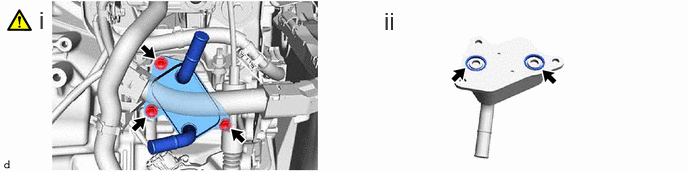

Remove the 3 bolts and motor cooling cooler from the hybrid vehicle transaxle assembly.

NOTICE:: Use a container to catch any hybrid transaxle fluid which flows out of the motor cooling cooler and hybrid vehicle transaxle assembly.

ii.

Remove the 2 transaxle oil seal rings.
