PB10 HYBRID TRANSMISSION / TRANSAXLE TRANSMISSION CONTROL CABLE REMOVAL

CAUTION / NOTICE / HINT

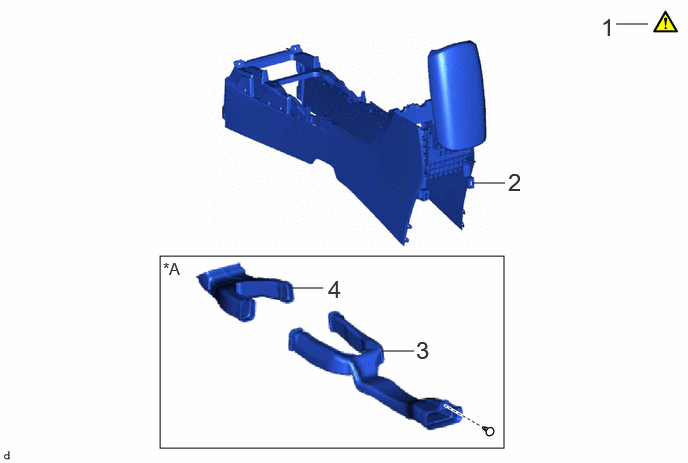

COMPONENTS (REMOVAL)

1.667,2.667 5.25,4.667 3.583,2 4.927,1.906 5.26,1.906 false 3.031,3 3.365,3 false 3.979,3.656 4.313,3.656 false 6.417,0.25 6.75,0.25 false 3.417,2.865 3.698,3.219 0.281,0.354 18 false 4 4.333,3.5 4.792,3.865 0.458,0.365 18 false 3 5.292,1.75 5.75,2.115 0.458,0.365 18 false 2 6.26,0.135 6.594,0.5 0.333,0.365 18 false 1 1.698,2.698 1.948,2.948 0.25,0.25 12 false *A

Procedure		Part Name Code
1	SECURE VEHICLE	-	(202307,999999,_52,_144756,_0603119,RM100000002BO7X_01_0197,)	-	-
2	CONSOLE BOX ASSEMBLY	58810J	-	-	-
3	NO. 2 CONSOLE BOX DUCT	58862B	-	-	-
4	NO. 1 CONSOLE BOX DUCT	58861B	-	-	-

*A

w/ Rear Air Duct

-

2.573,0.875 2.906,0.875 false 2.75,1.698 3.083,1.698 false 6.49,1.302 6.823,1.302 false 1.083,2.604 1.417,2.604 false 2.865,4.521 3.198,4.521 false 4.531,4.115 4.865,3.865 4.865,3.865 5.031,3.865 false 4.458,2.823 4.646,2.948 4.646,2.948 4.813,2.948 false 2.958,0.719 3.24,1.073 0.281,0.354 18 false 9 3.125,1.583 3.406,1.938 0.281,0.354 18 false 8 5.104,2.833 5.385,3.188 0.281,0.354 18 false 7 5.073,3.729 5.354,4.083 0.281,0.354 18 false 6 3.24,4.385 3.521,4.74 0.281,0.354 18 false 5 1.771,1.625 2.083,1.823 0.313,0.198 10 false x2 2.292,3.656 2.604,3.854 0.313,0.198 10 false x2 2.656,3.896 2.969,4.094 0.313,0.198 10 false x2 6.167,1.802 6.479,2 0.313,0.198 10 false x2 5.948,2.104 6.26,2.302 0.313,0.198 10 false x2 1.313,5.031 1.625,5.229 0.313,0.198 10 false x4 1.958,5.26 2.271,5.458 0.313,0.198 10 false x10 4.896,4.75 5.208,4.948 0.313,0.198 10 false x8 4.917,4.219 5.229,4.417 0.313,0.198 10 false x2 0.969,2.51 1.125,2.708 0.156,0.198 10 false ● 6.875,1.208 7.031,1.406 0.156,0.198 10 false ●

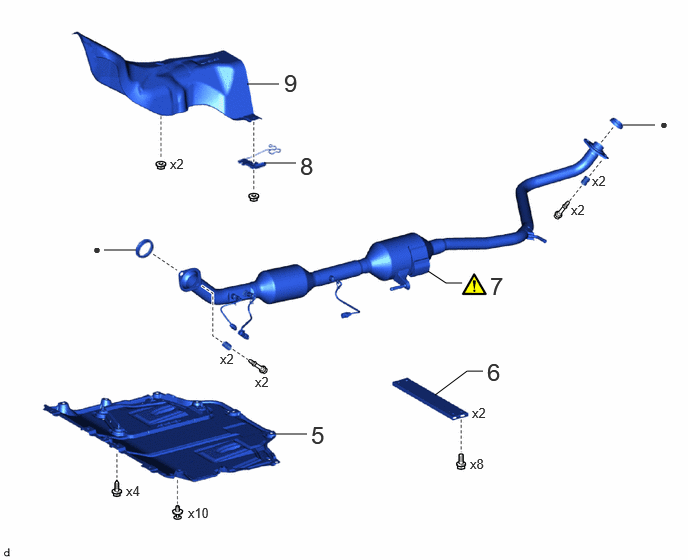

Procedure		Part Name Code
5	NO. 1 ENGINE UNDER COVER ASSEMBLY	51410	-	-	-
6	FRONT FLOOR CENTER BRACE	57533B	-	-	-
7	FRONT EXHAUST PIPE ASSEMBLY	17410	(202307,999999,_52,_144756,_0603119,RM100000002BO7X_01_0212,)	-	-

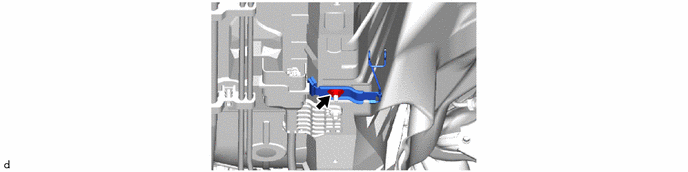

8	EXHAUST SENSOR CLAMP BRACKET	8946A	-	-	-

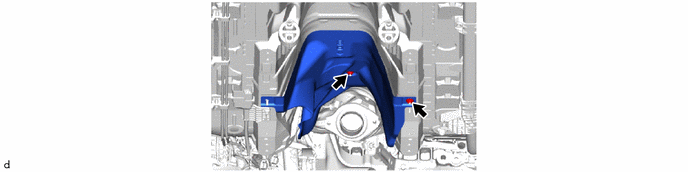

9	FRONT NO. 1 FLOOR HEAT INSULATOR	58151	-	-	-

●

Non-reusable part

-

3.813,2.813 3.813,3.146 false 0.583,4 0.917,4 false 4.531,0.906 4.865,0.906 false 3.844,3.125 4.99,3.448 1.146,0.323 18 false 10 - 12 5.49,2.875 5.802,3.073 0.313,0.198 10 false x2 0.458,3.906 0.615,4.104 0.156,0.198 10 false ● 4.906,0.823 5.219,1.021 0.313,0.198 10 false *1

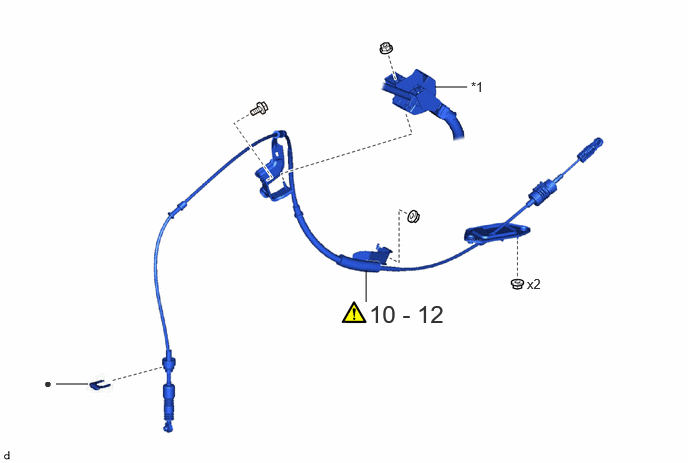

Procedure		Part Name Code

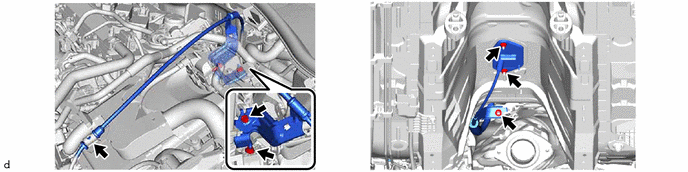

10	DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side)	33820B	(202307,999999,_52,_144756,_0603119,RM100000002BO7X_01_0216,)	-	-
11	DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side)	33820B	(202307,999999,_52,_144756,_0603119,RM100000002BO7X_01_0215,)	-	-
12	REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY	33820B	-	-	-

*1	FLOOR UNDER WIRE	-	-
●	Non-reusable part	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transmission control cable assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Gas leak from exhaust system is repaired	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202307,999999,_51,_144956,_0604911,RM100000002BWPD,)

CAUTION / NOTICE / HINT

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

PROCEDURE

Hide Display 1.SECURE VEHICLE

a.

0.49,0.042 0.771,0.396 0.281,0.354 18 false i

i.

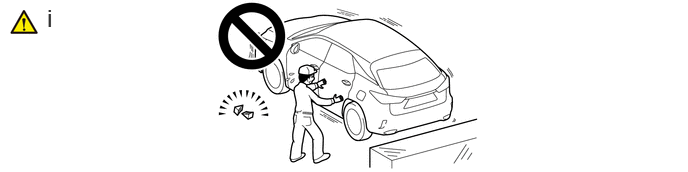

Fully apply the parking brake and chock a wheel.

CAUTION:: ·

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
