RM38T0EC _52 Drivetrain _144756 PB10 HYBRID TRANSMISSION / TRANSAXLE _0603118 HYBRID TRANSAXLE FLUID N

PB10 HYBRID TRANSMISSION / TRANSAXLE  HYBRID TRANSAXLE FLUID  ADJUSTMENT


PROCEDURE

Hide 2.DRAIN HYBRID TRANSAXLE FLUID

a.

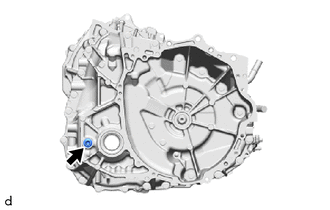

C488557

Remove the filler plug and gasket from the hybrid vehicle transaxle assembly.


b.
C488558

Using a 10 mm hexagon socket wrench, remove the drain plug and gasket from the hybrid vehicle transaxle assembly and drain the hybrid transaxle fluid.


c.

Using a 10 mm hexagon socket wrench, install the drain plug and a new gasket to the hybrid vehicle transaxle assembly.

Torque:
50 N*m (510 kgf*cm, 37 ft.*lbf)


d.

Temporarily install the filler plug and gasket to the hybrid vehicle transaxle assembly.

HINT:

Reuse the old gasket as the filler plug will be removed again.



Hide 3.ADD HYBRID TRANSAXLE FLUID

a.

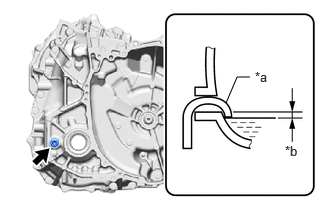

C488559C01
2.354,1.073 2.469,0.802 2.469,0.802 2.604,0.802 false 2.656,0.719 2.896,0.927 0.24,0.208 10 false *a 2.969,1.49 3.198,1.698 0.229,0.208 10 false *b
*a Filler Nozzle
*b 0 to 10 mm (0 to 0.394 in.)


Remove the filler plug and gasket from the hybrid vehicle transaxle assembly.


b.

Add hybrid transaxle fluid until the hybrid transaxle fluid level is between 0 to 10 mm (0 to 0.394 in.) from the bottom lip of the filler plug opening. [#]

Hybrid Transaxle Fluid Standard Capacity (for Reference):

3.67 liters (3.88 US qts, 3.23 Imp. qts)


NOTICE:
·

When adding hybrid transaxle fluid, make sure that the vehicle is level.

·

Use Toyota Genuine e-Transaxle fluid TE.

Using hybrid transaxle fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the transaxle of the vehicle.

·

Be sure to fully insert the filler nozzle into the filler plug opening.

·

Be sure to add hybrid transaxle fluid slowly. If hybrid transaxle fluid is added quickly, the hybrid transaxle fluid may hit internal parts and bounce back, resulting in hybrid transaxle fluid coming out of the filler plug opening. When using a manual lever type oil bucket pump, operate the lever at a speed of approximately one pump every 2 seconds.

·

Be sure to directly check that the hybrid transaxle fluid level is within the specified range.

·

Driving the vehicle with an insufficient or excessive amount of hybrid transaxle fluid may damage the hybrid vehicle transaxle assembly.




c.

After adding hybrid transaxle fluid, leave the vehicle for 30 seconds so that the hybrid transaxle fluid surface can become still again, and then check that the hybrid transaxle fluid level is between 0 to 10 mm (0 to 0.394 in.) from the bottom lip of the filler plug opening. (If the hybrid transaxle fluid level is low, repeat this procedure from step [#].)

NOTICE:

After adding hybrid transaxle fluid, make sure to check the hybrid transaxle fluid level.



d.

Temporarily install the filler plug and gasket to the hybrid vehicle transaxle assembly.

HINT:

Reuse the old gasket as the filler plug will be removed again.
