PB10 HYBRID TRANSMISSION / TRANSAXLE  HYBRID TRANSAXLE SYSTEM  ON-VEHICLE INSPECTION


CAUTION / NOTICE / HINT

CAUTION:
A379926

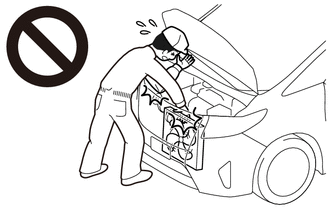

To prevent injury due to contact with an operating cooling fan, keep your hands and clothing away from the cooling fans when working in the engine compartment with the engine running or the ignition switch ON.


PROCEDURE

Hide 3.INSPECT TRANSAXLE FLUID PRESSURE

NOTICE:

Make sure to perform the following inspection after inspecting and adjusting the engine.


a.
C496733

Remove the bolt from the hybrid vehicle transaxle assembly.


b.

Remove the O-ring from the bolt.


c.
C496734C01
2.792,0.76 2.938,0.573 false 2.594,0.688 2.594,0.438 2.594,0.438 2.177,0.438 false 2.375,0.688 2.375,0.438 false 1.479,1.885 1.813,1.885 true 2.979,0.448 3.292,0.646 0.313,0.198 10 false *2 2.01,0.344 2.323,0.542 0.313,0.198 10 false *1 1.833,1.76 2.177,1.99 0.344,0.229 10 true SST
*1 Gasket
*2 O-ring


Install SST to the hybrid vehicle transaxle assembly.

SST
09993-19016  (09993-00021, 09993-00041)


d.

Put the engine in Inspection Mode (Maintenance Mode).

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INSPECTION MODE PROCEDURE


e.

Measure the hybrid transaxle fluid pressure.

Reference:
Maintenance Mode Engine Idle Speed Hybrid Transaxle Fluid Temperature Hybrid Transaxle Fluid Pressure
900 to 1000 rpm 20 to 50°C (68 to 122°F) 10 kPa (0.1 kgf/cm2, 1 psi) or more


NOTICE:

Be sure to cancel maintenance mode immediately after the hybrid transaxle fluid pressure check is completed.



f.

Remove SST from the hybrid vehicle transaxle assembly.


g.

Coat a new O-ring with Toyota Genuine e-Transaxle fluid TE and install it to the bolt.


h.

Install the bolt to the hybrid vehicle transaxle assembly.

Torque:
8.0 N*m (82 kgf*cm, 71 in.*lbf)


Hide 51444A 4.INSTALL REAR ENGINE UNDER COVER LH
