RM38T0EC _58 Vehicle Interior _104612 HEATING / AIR CONDITIONING _0500018 AIR CONDITIONING PRESSURE SENSOR A

HEATING / AIR CONDITIONING  AIR CONDITIONING PRESSURE SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

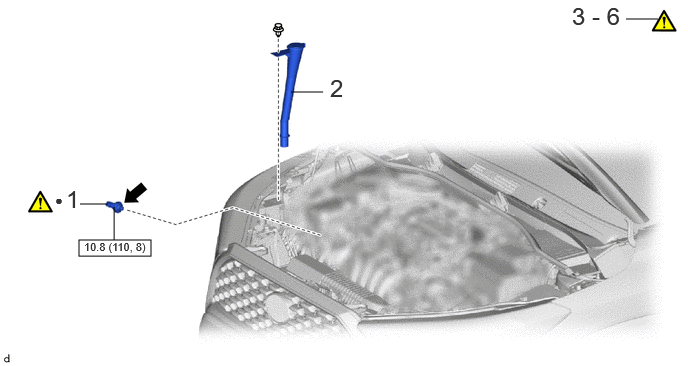

COMPONENTS (INSTALLATION)
I116686N05
0.823,2.5 1.573,2.667 0.75,0.167 3.031,0.958 3.365,0.958 false 0.833,2.125 1.125,2.125 false 6.521,0.198 6.854,0.198 false 1.188,2.5 1.188,2.156 false 3.438,0.771 3.719,1.125 0.281,0.354 18 false 2 0.688,1.927 0.969,2.281 0.281,0.354 18 false 1 0.573,2 0.729,2.198 0.156,0.198 10 false ● 5.958,0.021 6.656,0.375 0.698,0.354 18 false 3 - 6 0.875,2.5 1.656,2.719 0.781,0.219 8 false 10.8 (110, 8)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 AIR CONDITIONER PRESSURE SENSOR 88719A (Click here) - -
2 WASHER INLET 85319E - - -
3 CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT - (Click here) - -
4 WARM UP ENGINE - (Click here) - -
5 WARM UP COMPRESSOR - (Click here) - -
6 INSPECT FOR REFRIGERANT LEAK - (Click here) - -

V100146

N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part
V100135

for Gasoline Model:
Compressor oil ND-OIL 8 or equivalent
for HEV Model:
Compressor oil ND-OIL 11 or equivalent 		- -

PROCEDURE

Hide 88719A 1.INSTALL AIR CONDITIONER PRESSURE SENSOR

a.
I116556C01
5.865,0.354 6.219,0.354 true 5.396,1.625 5.75,1.625 true 5.781,1.531 5.99,1.708 0.208,0.177 10 true *a 6.24,0.271 6.448,0.448 0.208,0.177 10 true *b 0.51,0.104 0.792,0.458 0.281,0.354 18 false i 3.854,0.052 4.135,0.406 0.281,0.354 18 false ii 2.021,1.906 2.302,2.26 0.281,0.354 18 false iii
*a Turn *b Hold


i.

Remove the vinyl tape from the cooler refrigerant liquid pipe A and sufficiently apply compressor oil to a new air conditioner pressure sensor and the fitting surface of the air conditioner pressure sensor.

Compressor Oil:
for Gasoline Model:

ND-OIL 8 or equivalent

for HEV Model:

ND-OIL 11 or equivalent



ii.

Using a 27 mm deep socket wrench, install the air conditioner pressure sensor as shown in the illustration.

Torque:
10.8 N*m (110 kgf*cm, 8 ft.*lbf)


iii.

Connect the connector.



Hide 85319E 2.INSTALL WASHER INLET
