RM38T0EC _58 Vehicle Interior _104612 HEATING / AIR CONDITIONING _0500016 FRONT EVAPORATOR TEMPERATURE SENSOR A

HEATING / AIR CONDITIONING  FRONT EVAPORATOR TEMPERATURE SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

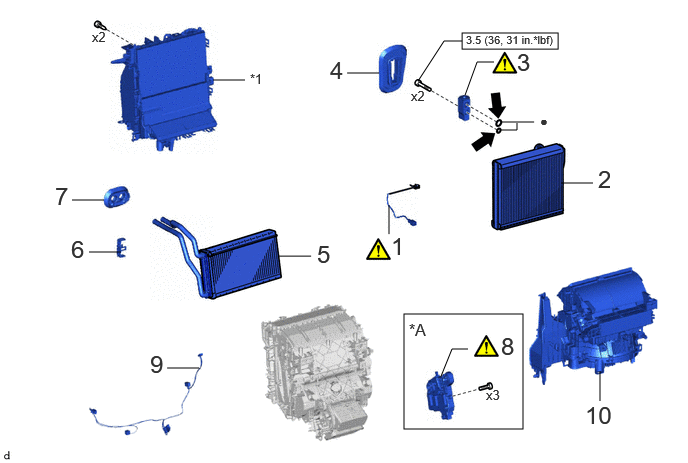

COMPONENTS (INSTALLATION)
I117820N01
4.813,0.344 5.813,0.51 1,0.167 4.208,3.271 5.448,4.469 1.24,1.198 2.219,0.833 2.552,0.833 false 0.75,2.083 1.083,2.083 false 0.927,2.625 1.26,2.625 false 2.906,2.667 3.24,2.667 false 4.052,2.438 4.052,2.135 false 3.615,0.76 3.948,0.76 false 5.844,1.906 6.177,1.906 false 1.74,3.833 2.073,3.833 false 4.594,3.917 4.708,3.635 4.708,3.635 4.875,3.635 false 6.25,3.865 6.25,4.177 false 4.844,0.99 4.969,0.646 4.969,0.646 5.146,0.646 false 5.229,1.271 5.563,1.271 false 5.219,1.354 5.385,1.354 5.385,1.354 5.385,1.281 false 4.354,0.844 4.625,0.427 4.625,0.427 4.813,0.427 false 5.625,1.177 5.781,1.375 0.156,0.198 10 false ● 2.604,0.74 2.917,0.938 0.313,0.198 10 false *1 6.094,4.177 6.469,4.521 0.375,0.344 18 false 10 1.563,3.646 1.844,4 0.281,0.354 18 false 9 5.219,3.458 5.5,3.813 0.281,0.354 18 false 8 0.573,1.896 0.854,2.25 0.281,0.354 18 false 7 0.74,2.448 1.021,2.802 0.281,0.354 18 false 6 3.302,2.5 3.583,2.854 0.281,0.354 18 false 5 3.438,0.583 3.719,0.938 0.281,0.354 18 false 4 5.385,0.5 5.667,0.854 0.281,0.354 18 false 3 6.229,1.719 6.51,2.073 0.281,0.354 18 false 2 4.073,2.417 4.333,2.781 0.26,0.365 18 false 1 5.063,4.031 5.375,4.229 0.313,0.198 10 false x3 0.958,0.302 1.271,0.5 0.313,0.198 10 false x2 4.281,0.917 4.594,1.115 0.313,0.198 10 false x2 4.854,0.344 5.865,0.521 1.01,0.177 8 false 3.5 (36, 31 in.*lbf) 4.26,3.333 4.635,3.573 0.375,0.24 12 false *A

Procedure Part Name Code
Z101186

Z101188

Z101187

1 NO. 1 COOLER THERMISTOR 88625 (Click here) - -
2 NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY 88501 - - -
3 COOLER EXPANSION VALVE 88515 (Click here) - -
4 COOLER PIPE GROMMET 88897K - - -
5 HEATER RADIATOR UNIT SUB-ASSEMBLY 87107A - - -
6 HEATER CLAMP 87124B - - -
7 HEATER GROMMET 87128 - - -
8 NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY 87050C (Click here) - -
9 AIR CONDITIONING HARNESS ASSEMBLY 82210K - - -
10 BLOWER ASSEMBLY 87130D - - -

*A for Automatic Air Conditioning System - -
*1 UPPER HEATER CASE - -
V100146

N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part
V100135

for Gasoline Model:
Compressor oil ND-OIL 8 or equivalent
for HEV Model:
Compressor oil ND-OIL 11 or equivalent 		- -

PROCEDURE

Hide 88625 1.INSTALL NO. 1 COOLER THERMISTOR

a.

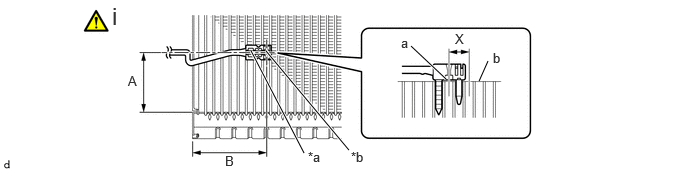

I116551C01
3.167,1.594 2.615,0.531 true 3.635,1.563 2.771,0.531 true 4.281,0.479 4.646,0.823 true 4.99,0.844 5.083,0.635 false 3.208,1.552 3.521,1.708 0.313,0.156 10 false *a 3.656,1.552 3.969,1.708 0.313,0.156 10 false *b 1.333,0.76 1.646,0.917 0.313,0.156 10 false A 2.344,1.594 2.656,1.75 0.313,0.156 10 false B 4.74,0.323 5.052,0.479 0.313,0.156 10 false X 4.177,0.365 4.49,0.521 0.313,0.156 10 false a 5.135,0.521 5.448,0.677 0.313,0.156 10 false b 1.167,0.021 1.448,0.375 0.281,0.354 18 false i
*a Securing Part *b Sensor Part


i.

Install the No. 1 cooler thermistor as shown in the illustration.

Installation Position:
Part Length Part Length
A 45 to 55 mm (1.77 to 2.17 in.) B 61.1 mm (2.41 in.)


NOTICE:
·

Be sure to insert the No. 1 cooler thermistor only once because reinserting it into the same position will not allow it to be firmly secured.

·

When reusing the No. 1 cooler evaporator sub-assembly, insert the No. 1 cooler thermistor one row next to the one that has been used previously (X in the illustration).

·

After inserting the No. 1 cooler thermistor, do not apply excessive force to the wire.

·

Directly insert the No. 1 cooler thermistor until the edge of the plastic case "a" comes into contact with the No. 1 cooler evaporator sub-assembly "b".





Hide 88501 2.INSTALL NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

Hide 88515 3.INSTALL COOLER EXPANSION VALVE

Z101186

Click here(Click here)

Hide 88897K 4.INSTALL COOLER PIPE GROMMET

Hide 87107A 5.INSTALL HEATER RADIATOR UNIT SUB-ASSEMBLY

Hide 87124B 6.INSTALL HEATER CLAMP

Hide 87128 7.INSTALL HEATER GROMMET

Hide 87050C 8.INSTALL NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (for Automatic Air Conditioning System)

Z101186

Click here(Click here)

Hide 82210K 9.INSTALL AIR CONDITIONING HARNESS ASSEMBLY
