RM38T0EC _58 Vehicle Interior _104612 HEATING / AIR CONDITIONING _0500013 CONDENSER A

HEATING / AIR CONDITIONING  CONDENSER  REASSEMBLY


CAUTION / NOTICE / HINT

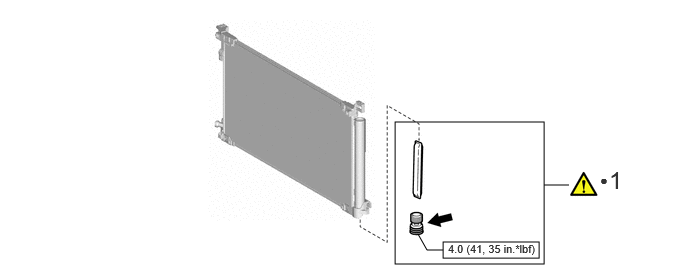

COMPONENTS (REASSEMBLY)
I116535N01
4.115,1.271 5.667,2.75 1.552,1.479 4.615,2.521 5.615,2.688 1,0.167 4.354,2.438 4.448,2.604 4.448,2.604 4.615,2.604 false 5.667,1.927 5.927,1.927 false 4.667,2.521 5.625,2.771 0.958,0.25 8 false 4.0 (41, 35 in.*lbf) 6.344,1.729 6.625,2.083 0.281,0.354 18 false 1 6.25,1.792 6.406,1.99 0.156,0.198 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

1 COOLER DRYER 88474 (Click here) - -

V100146

N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part
V100135

for Gasoline Model:
Compressor oil ND-OIL 8 or equivalent
for HEV Model:
Compressor oil ND-OIL 11 or equivalent 		- -

PROCEDURE

Hide 88474 1.INSTALL COOLER DRYER

a.
I116541C01
1.292,1.771 1.583,1.542 false 4.802,1.583 5.115,1.417 false 4.813,1.271 5.104,1.01 false 4.333,2.115 4.771,2.188 false 1.135,1.708 1.448,1.865 0.313,0.156 10 false *a 4.625,1.542 4.938,1.698 0.313,0.156 10 false *a 0.823,0.094 1.104,0.448 0.281,0.354 18 false i 2.781,1.792 3.063,2.146 0.281,0.354 18 false ii 4.031,0.094 4.313,0.448 0.281,0.354 18 false iii 4.646,1.198 5.01,1.406 0.365,0.208 10 false *b 4.802,2.125 5.167,2.333 0.365,0.208 10 false *b
*a Modulator *b Cup


i.

Using pliers, install a new cooler dryer to the modulator.


ii.

Sufficiently apply compressor oil to 3 O-rings and the fitting surfaces of a new cap.

Compressor Oil:
for Gasoline Model:

ND-OIL 8 or equivalent

for HEV Model:

ND-OIL 11 or equivalent


NOTICE:

Keep the O-rings and O-ring fitting surfaces free from dirt or foreign matter.



iii.

Using a 14 mm straight hexagon, install the cap to the modulator.

Torque:
4.0 N*m (41 kgf*cm, 35 in.*lbf)
